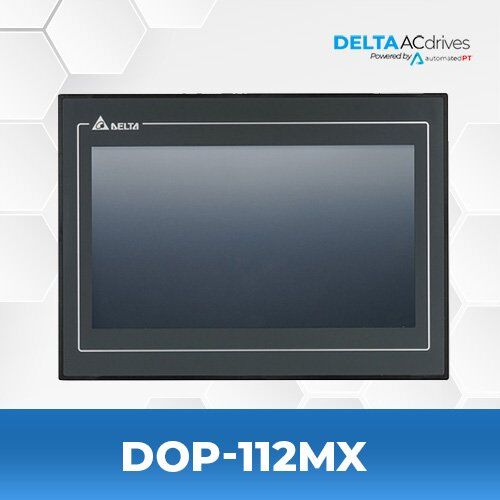

Delta DOP-112MX DOP-100 Series HMI Touchscreen

$1,909.60

Lead time – 1-2 weeks

  • DOP-100 Series
  • 12″ TFT LCD

PRODUCT SPECIFICATIONS

Model Name DOP-112MX
Series DOP-100 Series
Display Size and Type 12″ TFT LCD
Display Colors 24-bit
Resolution (pixels) 1024 x 768
Luminance (cd/m2) 500
MCU Cortex-A7, Dual Core 1 GHz
Flash ROM (Bytes) 8 GB
RAM (MB) 1 GB
USB 1 x v2.0 Mini USB / 1 x v2.0 USB
COM1 RS-232,RS-485
COM2 RS-422 / RS-485
COM3 RS-232 (supporting flow control) / RS-485
COM4 RS-422 / RS-485
Power Consumption (W) 16.08
IP Level IP65 / NEMA4 / UL Type 4X

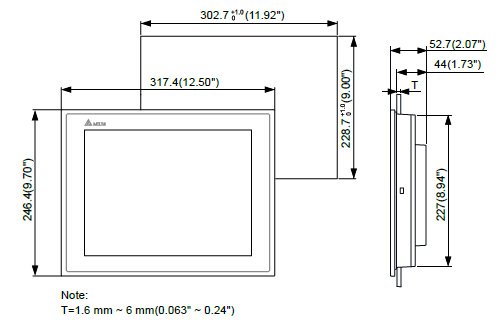

Dimensions 12.49 (in) x 9.7 (in) x 2.07 (in)

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

FILES

Catalog Delta DOP-100 Series Catalog
Dimensions Delta DOP-112MX Dimensions
Cable Selection Guide Delta PLC-HMI Cable Selection Guide
2D CAD Delta DOP-112MX 2D CAD
3D CAD Delta DOP-112MX 3D CAD  |  (View 3D File)
UL Certificate Delta DOP-112MX UL Certificate
Software Delta DOP-112MX Software

SERIES DESCRIPTION

Delta’s Human Machine Interface DOP-100 Series includes four categories for different applications: Basic, Standard, Advanced, and Handheld. The Basic, Standard, and Handheld HMI adopt the latest Cortex-A8 (800 MHz), while the 12″ / 15″ Advanced HMI adopts the Dual Core Cortex-A7 1Ghz high-speed processor. The DOP-100 Series employs 16-bit or 24-bit color LCD screens with high brightness and contrast. I

Easy Model Selection
The DOP-100 Series offers diverse models for different applications. Users can easily select a suitable HMI based on size or function

Advanced HMI
The Advanced HMI adopts a wide screen and narrow frame design. It supports Ethernet communication & multilingual inputs. The Multimedia Type DOP-112 / 115 offers multimedia functions to meet different applications.

Camera & Video Play, Multimedia Functions
Analog Camera, IP Camera, VGA Input, Video Play, Event Trigger
