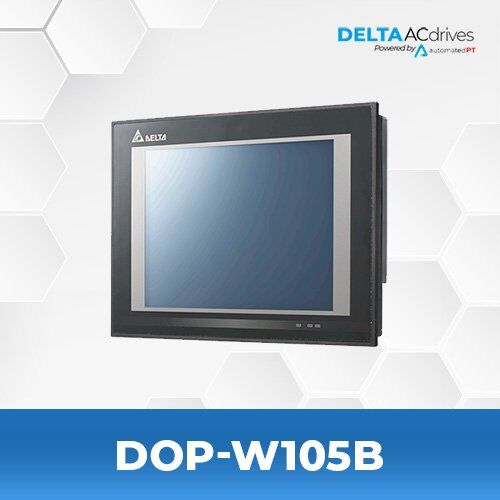

Delta DOP-W105B DOP-W Series HMI Touchscreen

  • DOP-W Series HMI Touchscreen
  • 10.4 Inches Display Size
  • 800 x 600 Pixel Resolution
  • 24 Volts Input

We provide all Delta AC Drives, VFD’s,  Delta AC Servo Motors, Delta Rotary Optical Encoders, Delta Motion Control Network, Delta Programmable Logic Controller, Delta Human Machine Interfaces, Delta Text Panels, Delta Temperature Controllers, Delta Industrial Fieldbus Solutions, Delta Pressure Sensor, Delta Brushless DC Motors as well as Delta Brushless DC Drives.


10.4″ (800 x 600 pixels) TFT LCD 65536 colors
2 sets of COM ports, support RS232 / RS422 / RS485
Supports USB Host, direct connection to USB disk, printer and mouse
Supports SD card
Supports 2 Ethernet ports
Supports audio output (MP3, Wav files)
Supports video format: MPEG1, MPEG2, WMV
Touch screen complies with IP65
Supports horizontal / vertical display
PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

DOP-W Series

The DOP-W Series is a large Human Machine Interface (HMI) that comes with a high resolution and high brightness touch screen in 10.4”, 12” and 15” sizes. With the latest Cortex-A8 processor for up to 1GHz pulse wave, the DOP-W Series delivers high performance with rapid response. Its rugged and CE-certified aluminum enclosure protects from vibration and changing ambient temperatures, and features an IP65 waterproof front panel for harsh environments. Built-in stereo speakers increase utility and flexibility. The DOP-W Series complies with CE and UL safety approvals and provides an efficient and competitive solution to meet customer needs for a wide range of high-end industrial automation applications.
