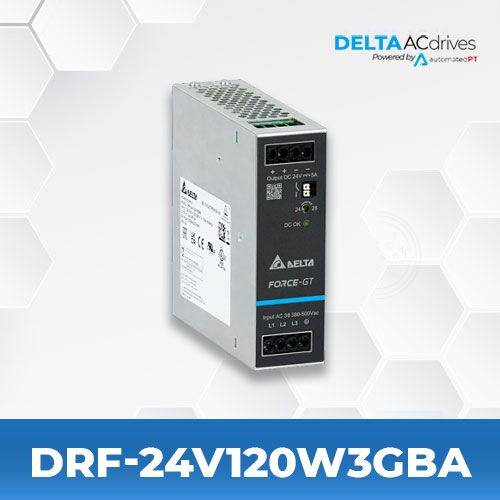

Delta DRF-24V120W3GBA DIN Rail Force-GT Series

$117.00

  • Force-GT Series
  • Phase: 3
  • Output Voltage: 24 V
  • Output Power: 120 W

PRODUCT SPECIFICATIONS

Model Name DRF-24V120W3GBA
Phase 3
Output Voltage Range 24 V
Output Power 120 W

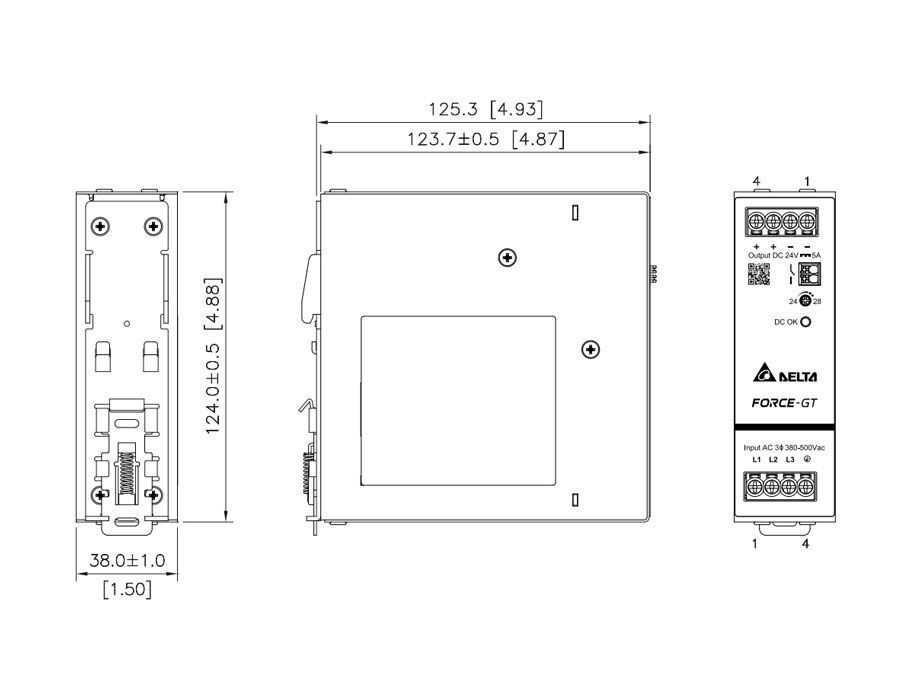

Dimensions (H x W x D) 4.93 in x 1.5 in x 4.88 in
Unit Weight 1.19 lbs

FILES

Catalog Delta DIN Rail Power Supplies Catalog
Dimensions Delta DRF-24V120W3GBA Dimensions
Data Sheet Delta DRF-24V120W3GBA Datasheet
2D CAD Delta DRF-24V120W3GBA 2D CAD
3D CAD Delta DRF-24V120W3GBA 3D CAD  |  (View 3D File)
UL Certificate Delta DRF-24V120W3GBA UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta offers a broad range of standard industrial power supplies in DIN rail, panel mount, and open frame types. The DIN rail lineup includes models with cold start at -40°C, Advanced Power Boost, smart monitoring, and ultra-slim designs to meet demanding applications.

Features
• Built-in constant current circuit for charging
applications
• Full load operating temperature up to 60°C
• Cold start at -40°C
• Ultra-Slim design
• Long life electrolytic capacitor
• Built-in DC OK relay and LED indicator
• Conformal coating on PCBAs to protect against
common dust and pollutants
