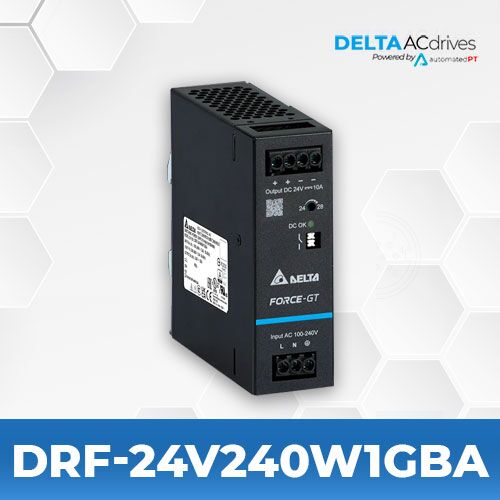

Delta DRF-24V240W1GBA DIN Rail Force-GT Series

$147.75

  • Output Voltage: 24V
  • Output Power: 240W
  • Output Current: 10A
  • Input Voltage Range: 90-264 Vac
  • Universal AC input voltage range
  • Built-in constant current circuit for charging applications


SPECIFICATIONS

Model Name DRF-24V240W1GBA
Series DIN Rail Power Supply
Output Voltage 24V
Input Voltage Range 90-264 Vac
Output Current 10A
Output Power 240W

CATALOG & MANUALS

Catalog Delta DIN Rail Product Selection Guide
Users Manual Delta DIN Rail Manual

Features Include:

  • Universal AC input voltage range
  • Built-in constant current circuit for charging applications
  • Full load operating temperature up to 60°C
  • Cold start at -40°C
  • Ultra-Slim design
  • Long life electrolytic capacitor
  • Built-in DC OK relay and LED indicator
  • Conformal coating on PCBAs to protect against common dust and pollutants
