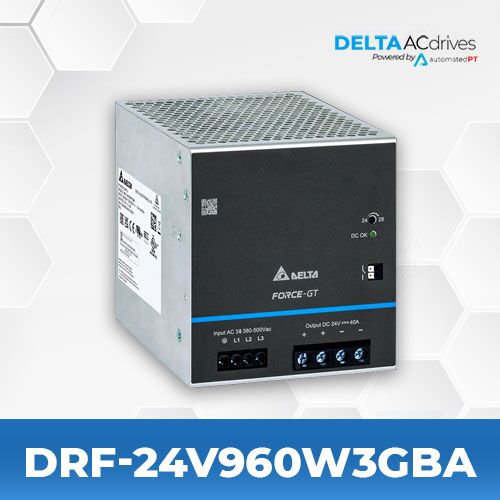

Delta DRF-24V960W3GBA DIN Rail Force-GT Series

$385.09

  • Output Voltage: 24V
  • Output Power: 960W
  • Phase: 3
  • Output Current: 40A
  • Input Voltage Range: 320-575 Vac
  • Universal AC input voltage range
  • Built-in constant current circuit for charging applications

SPECIFICATIONS

Model Name DRF-24V960W3GBA
Series DIN Rail Power Supply
Output Voltage 24V
Input Voltage Range 320-575 Vac
Output Current 40A
Output Power 960W

CATALOG & MANUALS

Catalog Delta DIN Rail Product Selection Guide
Users Manual Delta DIN Rail Manual

Features Include:

  • Universal AC input voltage range
  • Built-in constant current circuit for charging applications
  • Full load operating temperature up to 60°C
  • Cold start at -40°C
  • Ultra-Slim design
  • Long life electrolytic capacitor
  • Built-in DC OK relay and LED indicator
  • Conformal coating on PCBAs to protect against common dust and pollutants
