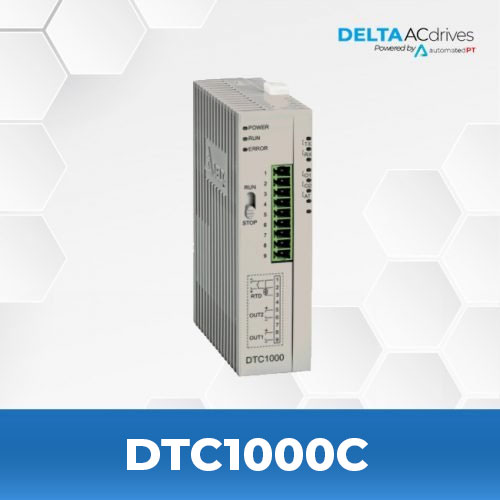

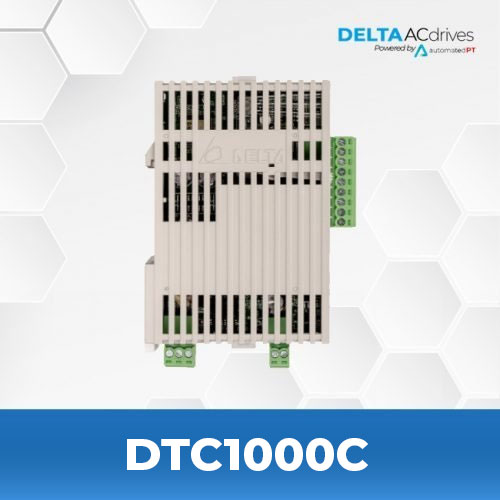

Delta DTC1000C DTC Controller

  • DTC Series
  • Protocol: Modbus protocol, ASCII/RTU format
  • RS-485 digital communication, 2,400bps ~ 38,400bps

PRODUCT SPECIFICATIONS

Model Name DTC1000C
Series DTC Series
Voltage Range Rated voltage: 90% ~ 110%
Power Supply 24 VDC
Power Consumption Rated 24 VDC, Max. 24 W combined, 3W + 3W x number of DTC2000 controllers (Max. 7)
Input Temperature Sensors Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK
Platinum RTD: Pt100, JPt100
Analog input: 0 ~ 5V, 0 ~ 10V, 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 50 mV
Output Type DC Current, 4 ~ 20 mA
Control Methods PID, programmable PID, On/Off, Manual
Communication RS-485 digital communication, 2,400bps ~ 38,400bps

FILES

Catalog Delta DTC Series Catalog
Dimensions Delta DTC1000C Dimensions
Instruction Sheet Delta DTC1000C Instruction Sheet
2D CAD Delta DTC1000C 2D CAD
UL Certificate Delta DTC1000C UL Certificate

SERIES DESCRIPTION

The DTC series features a modular and wire-saving structure to monitor multiple temperature points in parallel. Output flexibility allows users to configure output per applications. The built-in password protection prevents unauthorized operation or malicious damage.

The programmable PID control function allows users to set up to 64 groups of different temperature and control time. The DTC series also supports 3 levels of password protection, synchronous communication, and auto ID setup.

Many Sizes Available
From 48 × 24 mm to 96 × 96 mm, all panel sizes comply with international standards

Quality Assurance
All temperature controllers adopt an isolated switching power supply

  • 100 ~ 240 VAC / 24 VDC input power supply applicable in all countries of the world
  • CE, UL and C-Tick certified

Supports Various Sensors
Built-in various sensor input modes: Thermocouple, platinum RTD or linear voltage/current
