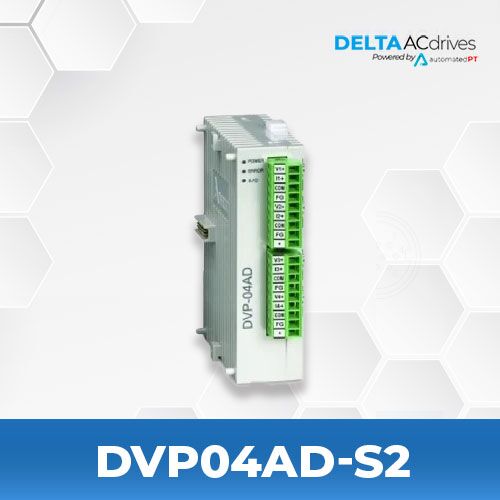

Delta DVP04AD-S2 DVP PLC Accessories

$261.45

Lead time – 1-2 weeks

  • DVP-S Series Compatible
  • Max. I/O: 4 I/O
  • Communication: RS-485
  • Module Function: Analog / digital conversion

PRODUCT SPECIFICATIONS

Model Name DVP04AD-S2
Compatible Series DVP-S Series
Classification Analog I/O Module
Inputs 4
Max. I/O Points 4 I/O
Communication RS-485
Connector Type / Terminal Block Removable terminal block
Module Function Analog / digital conversion

FILES

Catalog Delta DVP-S Series Series Catalog
Dimensions Delta DVP04AD-S2 Dimensions
Instruction Sheet Delta DVP04AD-S2 Instruction Sheet
2D CAD Delta DVP04AD-S2 2D CAD
3D CAD Delta DVP04AD-S2 3D CAD  |  (View 3D File)

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The Delta DVP Series Programmable Logic Controller (PLC) series have a high degree of reliability and high speed performance. DVP PLC’s are designed with large instruction sets and multiple function cards. The DVP Series is compatible with Delta AC motor drives (VFDs), Servos, HMI’s (Panels and touchscreens), and temperature controllers.

Features

  • Digital modules (output/input/mix): 8,16, 32(AC power)
  • Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit)
  • Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs Pt100 / Pt1000 / Ni100 / Ni1000, thermocouple inputs J, K, R, S, T, E, N type
  • Resolver modules: distance 50M, resolution 12-bits, 500rpm, disconnection detection is supported
