Delta DVP04DA-E2 DVP PLC Accessories

  • DVP-ES3/ES3-TEC/EX3/ES2/EX2 Series Compatible
  • I/O Points: 4 I/O
  • Removable terminal block (distance to the terminal is 5 mm)
  • Module Function: Digital / analog conversion

PRODUCT SPECIFICATIONS

Model Name DVP04DA-E2
Compatible Series DVP-ES3/ES3-TEC/EX3/ES2/EX2 Series
Classification Analog I/O Module
Outputs 4
Connector Type / Terminal Block Removable terminal block (distance to the terminal is 5 mm)
Module Function Digital / analog conversion
Conversion Time 400 μs/channel

FILES

Catalog Delta DVP Series Catalog

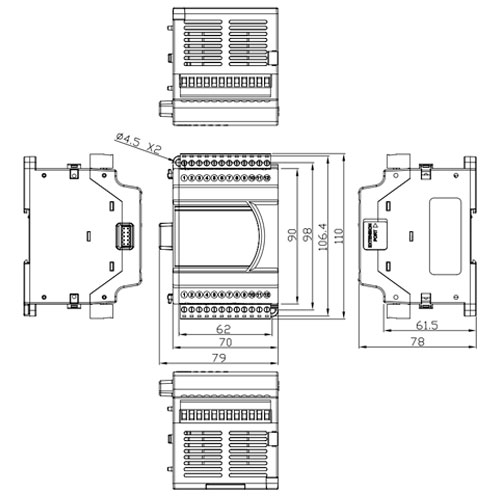

Dimensions Delta DVP04DA-E2 Dimensions
Instruction Sheet Delta DVP04DA-E2 Instruction Sheet
2D CAD Delta DVP04DA-E2 2D CAD
3D CAD Delta DVP04DA-E2 3D CAD  |  (View 3D File)
UL Certificate Delta DVP04DA-E2 UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The Delta DVP Series Programmable Logic Controller (PLC) series have a high degree of reliability and high speed performance. DVP PLC’s are designed with large instruction sets and multiple function cards. The DVP Series is compatible with Delta AC motor drives (VFDs), Servos, HMI’s (Panels and touchscreens), and temperature controllers.

Features

  • Digital modules (output/input/mix): 8,16, 32(AC power)
  • Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit)
  • Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs Pt100 / Pt1000 / Ni100 / Ni1000, thermocouple inputs J, K, R, S, T, E, N type
  • Resolver modules: distance 50M, resolution 12-bits, 500rpm, disconnection detection is supported
