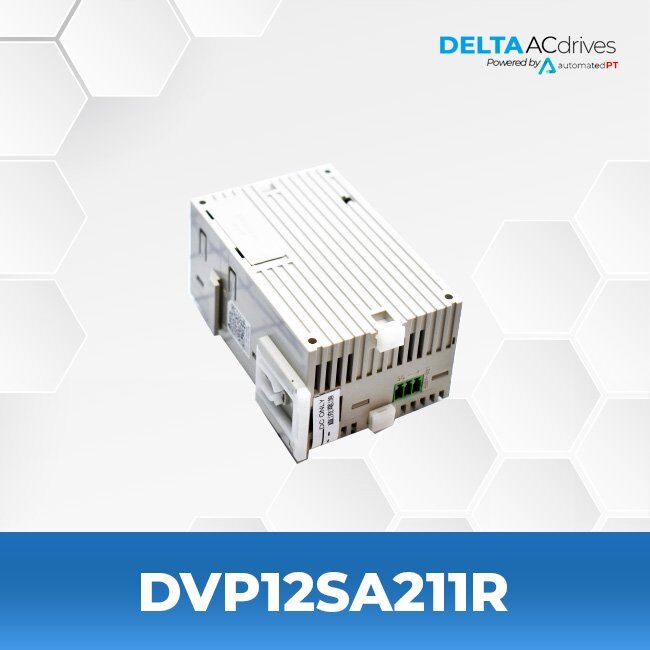

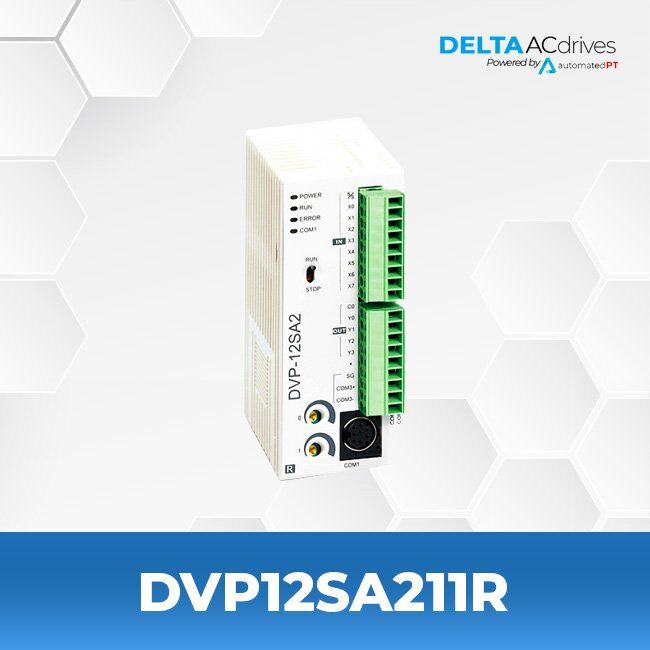

Delta DVP12SA211R DVP-SA Series PLC

$259.09

  • DVP-SA2 Series
  • Program Capacity: 16k Steps
  • Communication: Built-in 1 RS-232 and 2 RS-485 ports
  • Supports standard Modbus ASCII / RTU protocol and PLC Link function

PRODUCT SPECIFICATIONS

Model Name DVP12SA211R
Series DVP-SA2 Series
Output Method Relay
Program Capacity 16k Steps
Inputs 8
Outputs 4
Input Type DC (SINK or SOURCE)
High-Speed Counter 4 points of high-speed pulse output: 100kHz /2 points, 10kHz /2 points
8 points of high-speed pulse input: 100kHz /2 points, 10kHz /6 points, 1 set of A/B phase 50kHz
Execution Speed 0.35μs
Communication Built-in 1 RS-232 and 2 RS-485 ports

FILES

Catalog Delta DVP-SA2 Series Catalog

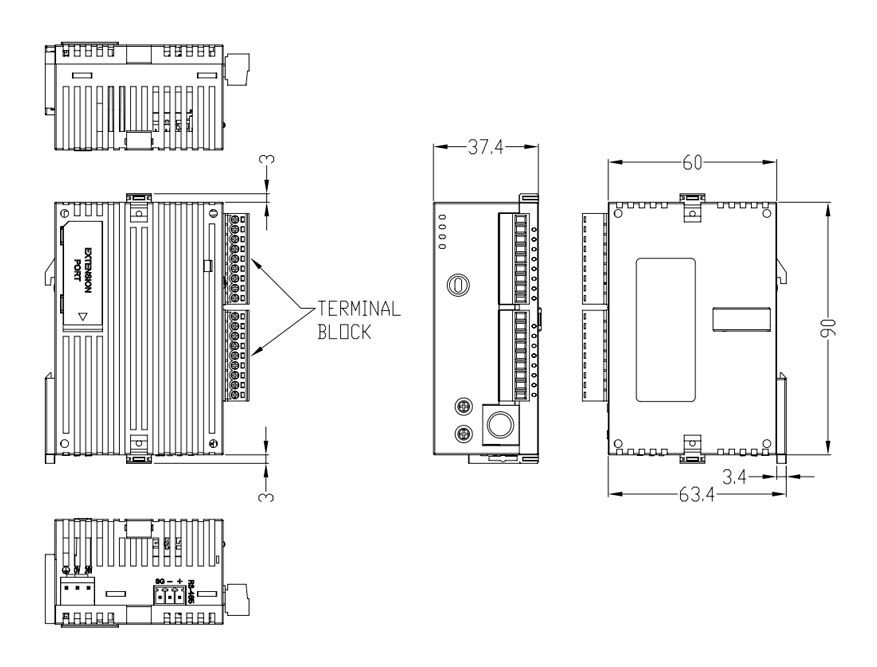

Dimensions Delta DVP12SA211R Dimensions
Instruction Sheet Delta DVP12SA211R Instruction Sheet
2D CAD Delta DVP12SA211R 2D CAD
3D CAD Delta DVP12SA211R 3D CAD  |  (View 3D File)
UL Certificate Delta DVP12SA211R UL Certificate
Cable Selection Guide Delta DVP12SA211R Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions.

Features

  • 32-bit CPU for high-speed processing
  • Program capacity: 16 k steps
  • Data register: 10 k words
  • Max. execution speed of basic instructions: 0.35 μs
  • Built-in 1 RS-232 and 2 RS-485 ports (Master / Slave)
  • Supports standard Modbus ASCII / RTU protocol and PLC Link function
  • No battery required; RTC function operates for 15 days after power off
  • Supports DVP-S Series modules (left-side and right-side)
