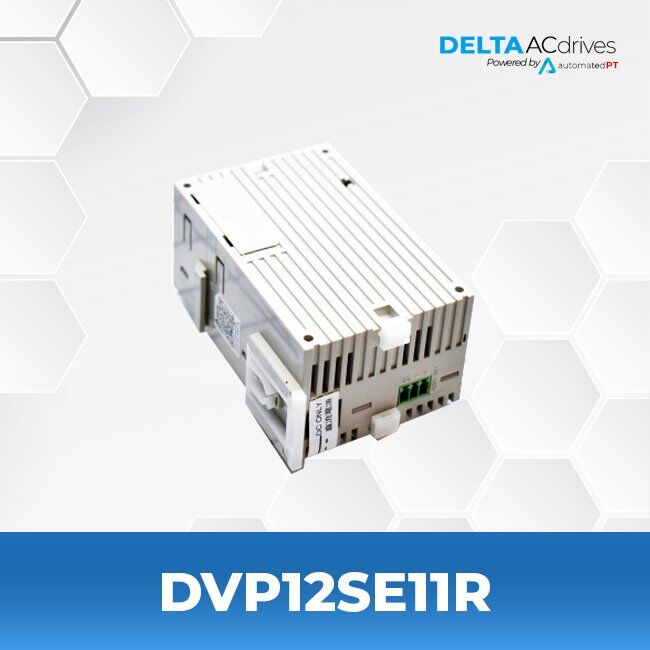

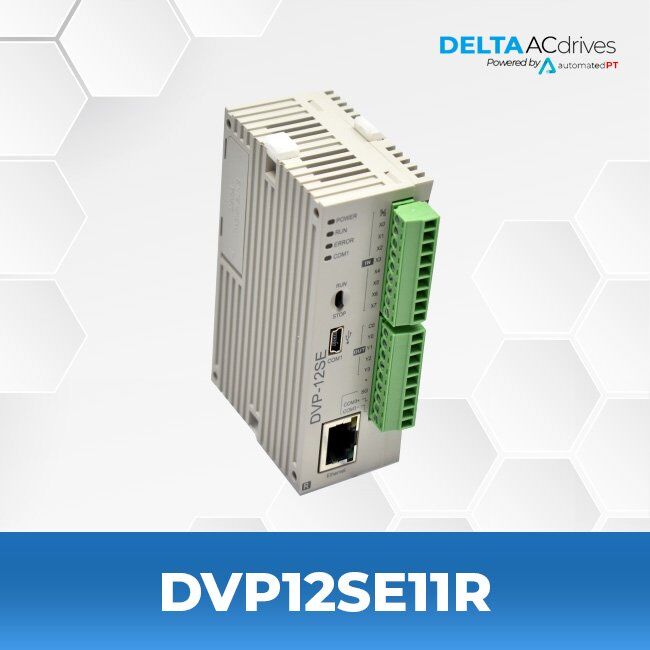

Delta DVP12SE11R DVP-SE Series PLC

$482.74

Lead time – 1-2 weeks

  • DVP-SE Series
  • Program Capacity: 16k Steps
  • Output Method: Relay
  • Built-in mini USB port, RS-485 port*2 and Ethernet port that supports Modbus TCP and EtherNet/IP Slave (adapter)

PRODUCT SPECIFICATIONS

Model Name DVP12SE11R
Series DVP-SE Series
Output Method Relay
Program Capacity 16k Steps
Inputs 8
Outputs 4
High-Speed Counter 4 points of high-speed pulse output: 100 kHz / 2 points, 10 kHz / 2 points
8 points of high-speed pulse input: 100 kHz / 2 points, 10 kHz / 6 points, 1 set of A / B phase 50 kHz
Execution Speed 0.64μs
Communication Built-in mini USB port, RS-485 port*2 and Ethernet port

FILES

Catalog Delta DVP-SE Series Catalog

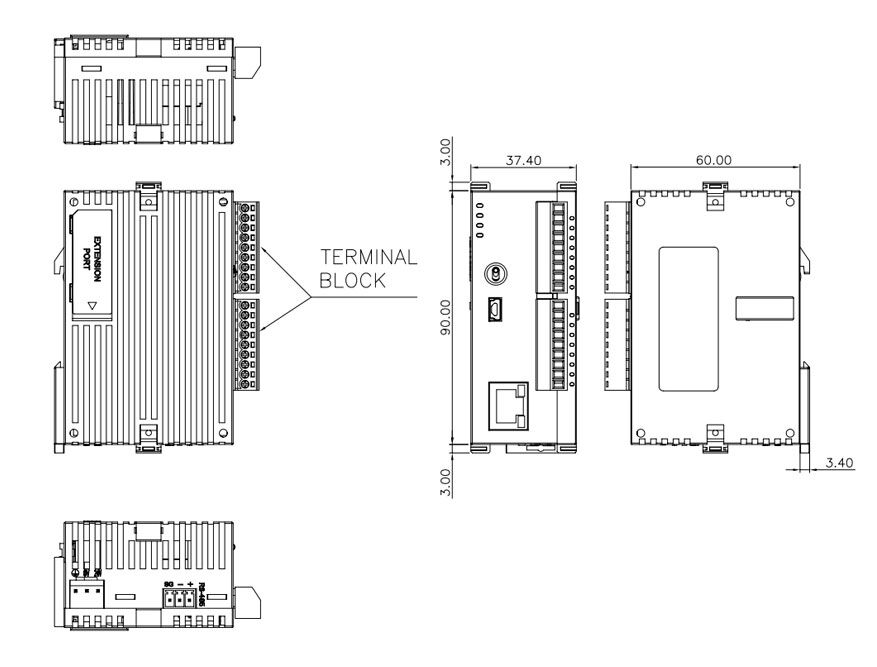

Dimensions Delta DVP12SE11R Dimensions
Instruction Sheet Delta DVP12SE11R Instruction Sheet
2D CAD Delta DVP12SE11R 2D CAD
3D CAD Delta DVP12SE11R 3D CAD  |  (View 3D File)
UL Certificate Delta DVP12SE11R UL Certificate
Cable Selection Guide Delta DVP12SE11R Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The most complete network type slim PLC in the industry

Features

  • 32-bit CPU for high-speed processing
  • Program capacity: 16 k steps
  • Data register: 12 k words
  • Max. execution speed of basic instructions: 0.64 μs
  • Built-in mini USB port, RS-485 port*2 and Ethernet port that supports Modbus TCP and EtherNet/IP Slave (adapter)
  • IP Filter functions as firewall for first line protection against malware and network threats
  • Supports DVP-S Series modules (left-side and right-side)
  • No battery required; RTC function operates for 15 days after power off
