Delta DVP14EC00T3 DVP-EC Series PLC

Delta DVP14EC00T3 DVP-EC Series PLC

  • DVP14EC00T3
  • Built-in I/O: 14 I/O
  • Program Capacity: 4k Steps
  • Supports 2 points (Y0, Y1) of independent high-speed (max. 10 kHz) pulse output

PRODUCT SPECIFICATIONS

Model Name DVP14EC00T3
Series DVP-EC3 Series
Output Method Transistor (NPN)
Program Capacity 4k Steps
Inputs 8
Outputs 6
High-Speed Counter 2 points, max. 10 kHz
Communication Built-in RS-232 and RS-485 ports

FILES

Catalog Delta DVP-EC3 Series Catalog

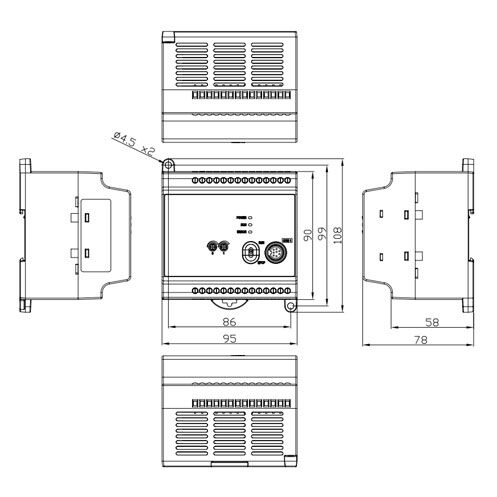

Dimensions Delta DVP14EC00T3 Dimensions
Instruction Sheet Delta DVP14EC00T3 Instruction Sheet
2D CAD Delta DVP14EC00T3 2D CAD
3D CAD Delta DVP14EC00T3 3D CAD  |  (View 3D File)
UL Certificate Delta DVP14EC00T3 UL Certificate
Cable Selection Guide Delta DVP14EC00T3 Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Applicable for sequence control and simple RS-485 / Modbus communication

Features

  • Built-in I/O: 10 / 14 / 16 / 20 / 24 / 30 / 32 / 40 / 48 / 60
  • Program capacity: 8 k steps
  • COM port: Built-in RS-232 & RS-485 ports (10 / 14-point models do not support RS-485), compatible with Modbus ASCII / RTU protocol
  • Supports 2 points (Y0, Y1) of independent high-speed (max. 10 kHz) pulse output
