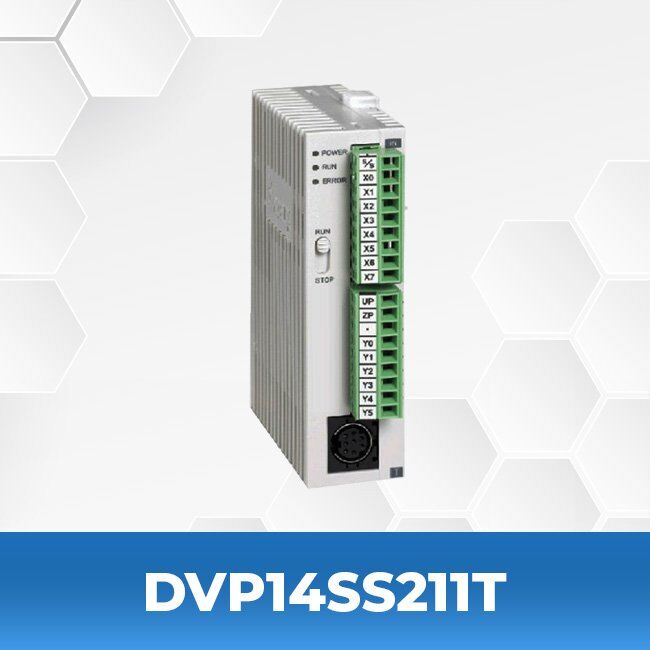

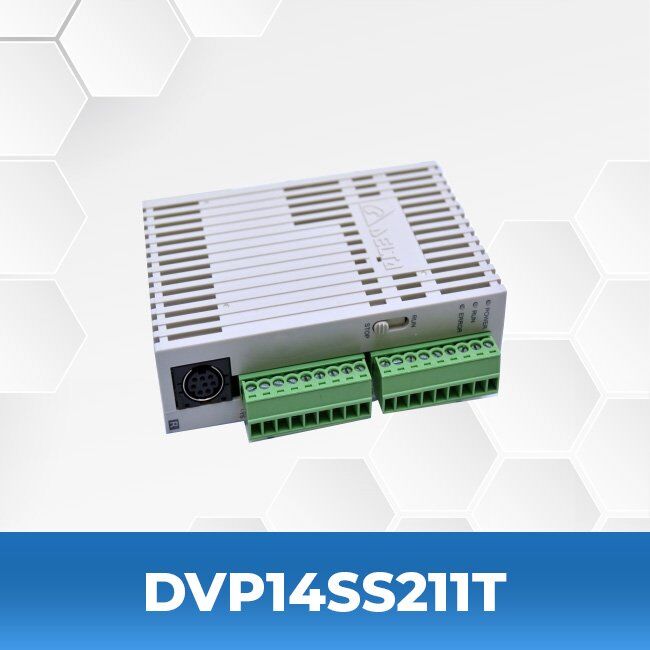

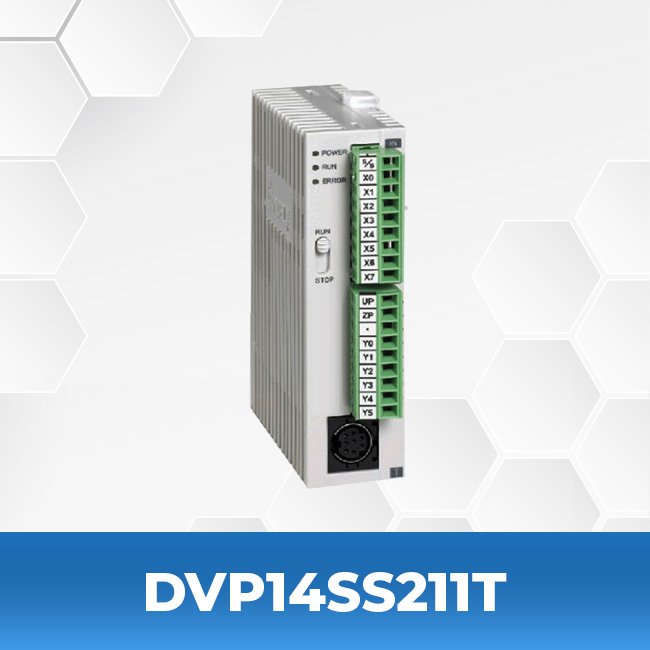

Delta DVP14SS211T DVP-SS Series PLC

$211.05

  • DVP-SS2 Series
  • Max. I/O: 480 points
  • Program Capacity: 8k Steps
  • Supports standard Modbus ASCII / RTU protocol and PLC Link function

PRODUCT SPECIFICATIONS

Model Name DVP14SS211T
Series DVP-SS2 Series
Output Method Transistor (NPN)
Program Capacity 8k Steps
Inputs 8
Outputs 6
Max. I/O 480 points
High-Speed Counter 8 points of high-speed counters: 20kHz /4 points, 10kHz /4 points
Execution Speed 0.35μs
Communication Built-in RS-232 and RS-485 ports

FILES

Catalog Delta DVP-SS2 Series Catalog

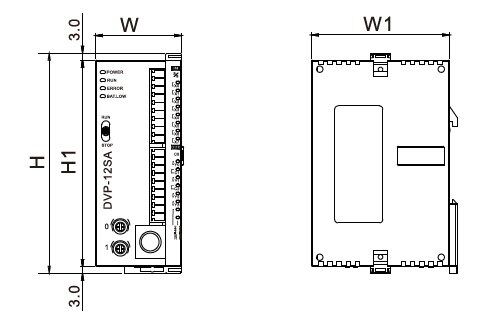

Dimensions Delta DVP14SS211T Dimensions
Instruction Sheet Delta DVP14SS211T Instruction Sheet
2D CAD Delta DVP14SS211T 2D CAD
3D CAD Delta DVP14SS211T 3D CAD  |  (View 3D File)
UL Certificate Delta DVP14SS211T UL Certificate
Cable Selection Guide Delta DVP14SS211T Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.

Features

  • 32-bit CPU for high-speed processing
  • Max. I/O: 480 points
  • Program capacity: 8 k steps
  • Data register: 5 k words
  • Max. execution speed of basic instructions: 0.35 μs
  • Built-in RS-232 and RS-485 ports (Master / Slave)
  • Supports standard Modbus ASCII / RTU protocol and PLC Link function
