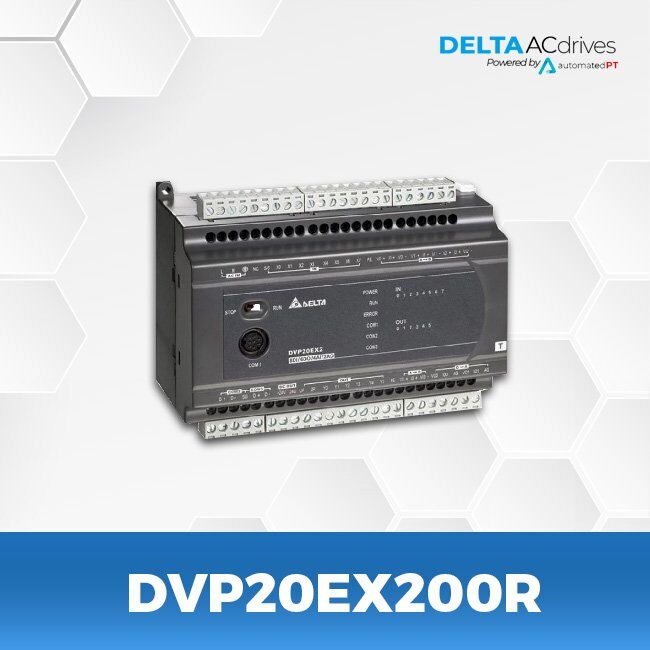

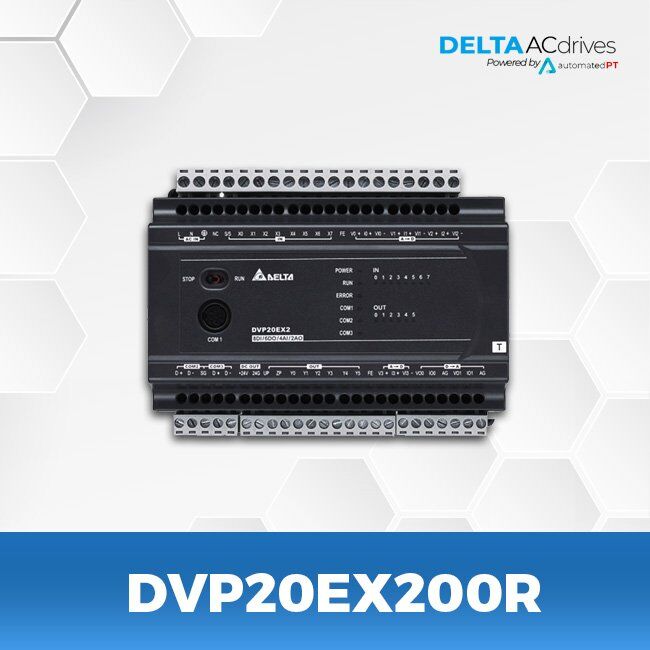

Delta DVP20EX200R DVP-EX Series PLC

  • DVP-EX2 Series
  • Program Capacity: 16k Steps
  • Built-in analog I/O of 12-bit resolution (EX2 only)
  • Built-in PID auto tuning function for a complete analog control solution

PRODUCT SPECIFICATIONS

Model Name DVP20EX200R
Series DVP-EX2 Series
Program Capacity 16k Steps
Output Method Relay
Inputs 8, 4
Max I/O Points 20 I/O
Outputs 6, 2
Communication 1 RS-232 and 2 RS-485 ports
High-speed Counter 100 kHz
Execution Speed 0.35μs

FILES

Catalog Delta DVP-EX2 Series Catalog

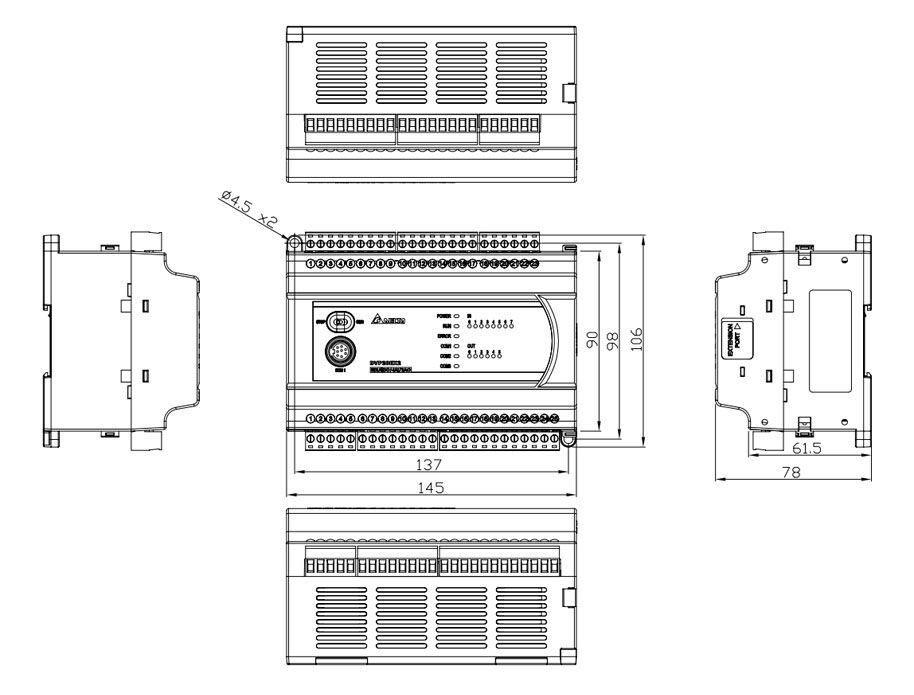

Dimensions Delta DVP20EX200R Dimensions
2D CAD Delta DVP20EX200R 2D CAD
3D CAD Delta DVP20EX200R 3D CAD  |  (View 3D File)
UL Certificate Delta DVP20EX200R UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Standard PLCs with integrated communication and highly efficient processing ability for your control systems

Features

  • 32-bit CPU for high-speed processing
  • Standard PLC DVP-ES2 Series: 16 / 20 / 24 / 32 / 40 / 60 / 80 I/O points for a variety of applications
  • Analog I/O PLC DVP-EX2:

    • -Built-in 12-bit 4 analog inputs / 2 analog output; and 14-bit analog I/O extension module
    -Built-in PID auto tuning function for a complete analog control solution

  • Built-in 1 RS-232 and 2 RS-485 ports
  • Program capacity: 16 k steps
  • Data register: 10 k words
  • Max. execution speed of basic instructions: 0.35 μs
  • RTC function and file register (5 k words) (hardware version 2.0 and above)
  • Highly efficient processing ability: 1 k steps of programs can be completed within 1ms
  • Max. 100 kHz pulse control; specific motion control instructions (mark/masking and instant frequency changing) available for multi-axis applications
  • Up to 4 levels of password protection secures your source programs and intellectual propert
