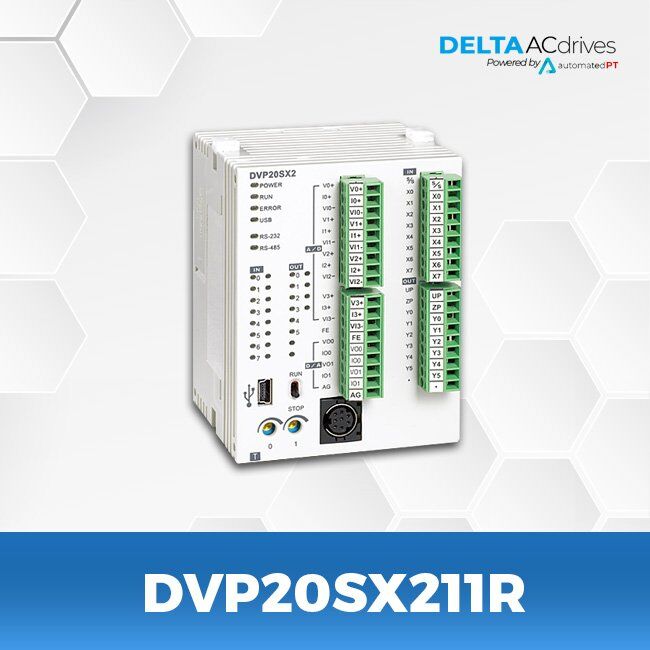

Delta DVP20SX211R DVP-SX Series PLC

$453.60

Lead time – 1-2 weeks

  • DVP-SX2 Series
  • Program Capacity: 16k Steps
  • Output Method: Relay
  • Supports standard Modbus ASCII / RTU protocol and PLC Link function

PRODUCT SPECIFICATIONS

Model Name DVP20SX211R
Series DVP-SX2 Series
Output Method Relay
Program Capacity 16k Steps
Inputs 8 (4AI)
Outputs 6 (2AO)
Max. I/O 20 I/O
Input Type DC (SINK or SOURCE)
High-Speed Counter 4 points of high-speed pulse output: 100kHz /2 points, 10kHz /2 points
8 points of high-speed pulse input: 100kHz /2 points, 10kHz /6 points
Execution Speed 0.35μs
Communication Built-in mini USB, RS-232 and RS-485 ports

FILES

Catalog Delta DVP-SX2 Series Catalog

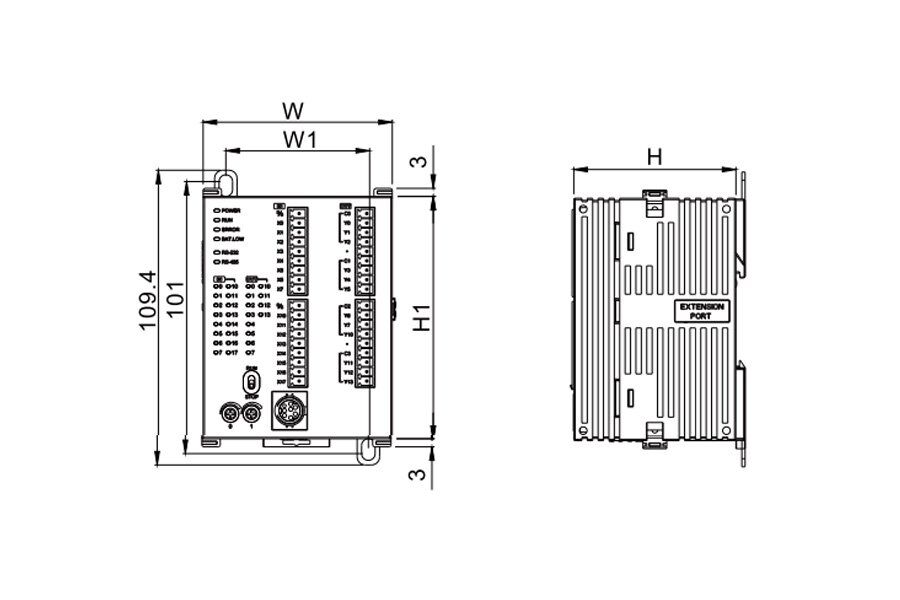

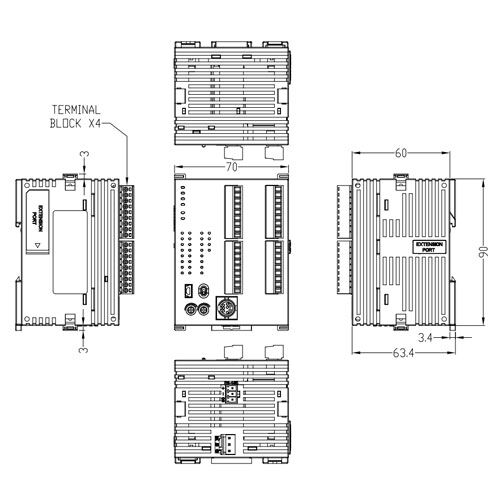

Dimensions Delta DVP20SX211R Dimensions
Instruction Sheet Delta DVP20SX211R Instruction Sheet
2D CAD Delta DVP20SX211R 2D CAD
3D CAD Delta DVP20SX211R 3D CAD  |  (View 3D File)
UL Certificate Delta DVP20SX211R UL Certificate
Cable Selection Guide Delta DVP20SX211R Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Analog model with highly efficient PID control function

Features

  • 32-bit CPU for high-speed processing
  • Program capacity: 16 k steps
  • Data register: 10 k words
  • Max. execution speed of basic instructions: 0.35 μs
  • Built-in 4 analog inputs / 2 analog outputs
  • Built-in mini USB, RS-232 and RS-485 ports (Master / Slave)
  • Supports standard Modbus ASCII / RTU protocol and PLC Link function
  • PID Auto Tuning function for highly efficient PID control
  • No battery required; RTC function operates for at least one week after power off (hardware version 2.0 and above)
  • Supports DVP-S Series modules (left-side and right-side)
