Delta DVP28EX300MT DVP-EX Series PLC

Delta DVP28EX300MT DVP-EX Series PLC

  • DVP-EX3 Series
  • Max. 256 points for I/O (Max. 8 x AIO extension modules)
  • 64k Steps Program Capacity
  • Built-in 2 x RS-485, AIO (EX3 models only), Micro SD card

PRODUCT SPECIFICATIONS

Model Name DVP28EX300MT
Series DVP-EX3 Series
Program Capacity 64k Steps
Output Method Transistor
Execution Speed 25 ns, support AS APIs
Max I/O Points Max. 256 points for I/O (Max. 8 x AIO extension modules)
DIO / AIO 28 I/O
SD Card Micro SDHC, Max. 32G
USB Mini USB, B type
Communication 2 Ethernet ports, 1 CAN port, 2 x RS485

FILES

Catalog Delta DVP-EX3 Series Series Catalog

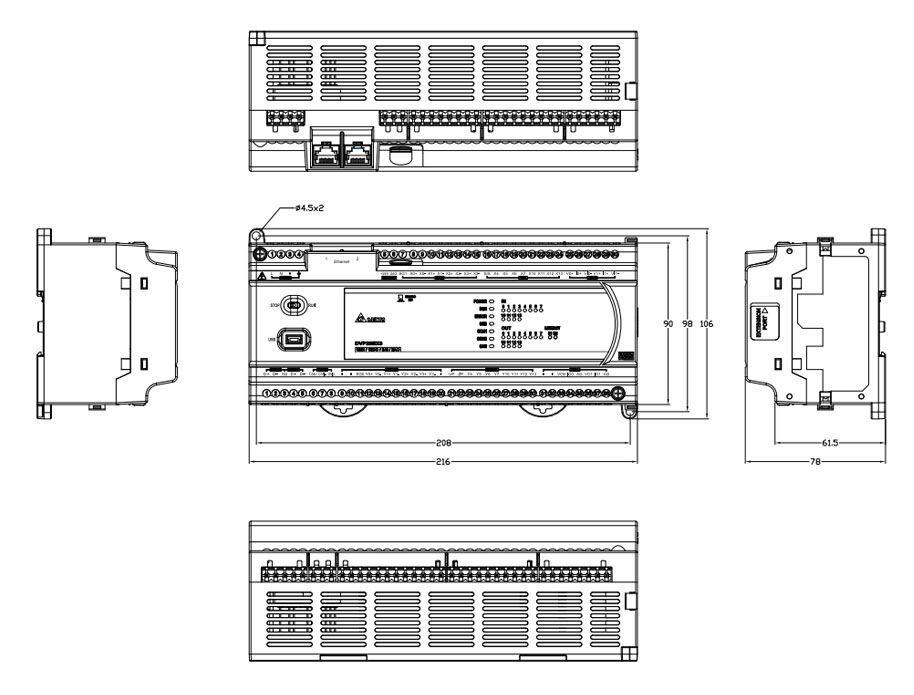

Dimensions Delta DVP28EX300MT Dimensions
Instruction Sheet Delta DVP28EX300MT Instruction Sheet
2D CAD Delta DVP28EX300MT 2D CAD
3D CAD Delta DVP28EX300MT 3D CAD  |  (View 3D File)
UL Certificate Delta DVP28EX300MT UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta’s third generation DVP PLCs EX3 series employs the AS series PLC’s 32-bit high-speed processor with a user-friendly programming interface, built-in analog I/O, and multiple communication ports. Compared with the previous generation, the EX3 series upgrades execution performance, expands program capacity, and enhances interoperability.

Min. execution time of basic instruction: 25 ns (adopts 32-bit SoC processor)

  • 64k program capacity
  • Max. 256 points for I/O (Max. 8 x AIO extension modules)
  • Built-in 2 x RS-485, AIO (EX3 models only), Micro SD card
  • Supports EtherCAT* (ES3-TEC models only), EtherNet/IP Scanner/Adapter, Modbus TCP, CANopen DS301 (ES3 / EX3 models only)
  • CANopen Delta mode (ES3 / EX3 models only), support Max. 8 Delta servos and motor s for right / left side expansion without setup of DS301 data exchange table
  • EtherCAT Delta mode (ES3-TEC models only), support Delta servos and Delta motor drives up to 16 without setup of EtherCAT topology and configuration (Note: ES3-TEC firmware version V1.08.30 or later version is able to support the 3rd EtherCAT slave devices) Max. 8 slaves
  • Built-in dual E thernet ports support dual IP mode
