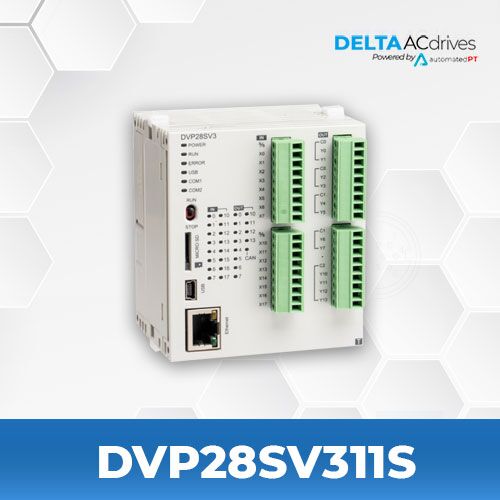

Delta DVP28SV311S DVP-SV Series PLC

  • DVP-SV3 Series
  • Built-in 2 x RS-485, AIO (4AI, 2AO, 12 bits, SX3 models only), Micro SD card
  • 64k Steps Program Capacity

PRODUCT SPECIFICATIONS

Model Name DVP28SV311S
Series DVP-SV3 Series
Program Capacity 64k Steps
Output Method Transistor (PNP)
Execution Speed 25 ns, support AS APIs
Max I/O Points 512 points (256 inputs + 256 outputs, including of its built-in 16 inputs and 16 outputs)
DIO / AIO 28 I/O
SD Card Micro SDHC, Max. 32G
USB Mini USB, B type
Communication 1 Ethernet port, 1 CAN port, 2 x RS485

FILES

Catalog Delta DVP-SV3 Series Series Catalog

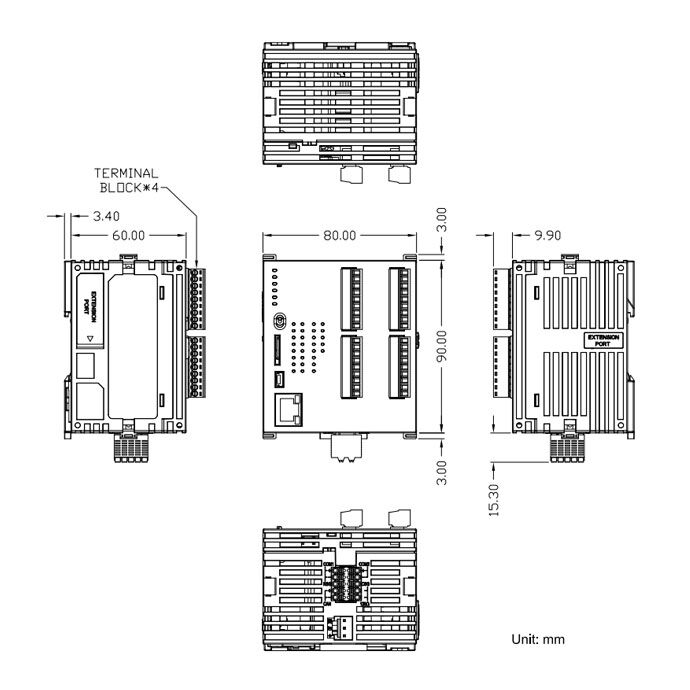

Dimensions Delta DVP28SV311S Dimensions
Instruction Sheet Delta DVP28SV311S Instruction Sheet
2D CAD Delta DVP28SV311S 2D CAD
3D CAD Delta DVP28SV311S 3D CAD  |  (View 3D File)
UL Certificate Delta DVP28SV311S UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

To fulfill the market demands for value-added, compact versatile programmable logic controllers, Delta’s third generation DVP PLCs SV3 series adopts the AS series PLC’s 32-bit high-speed processor and provides a user-friendly programming interface, multiple built-in communication ports, and expanded program capacity.

Compared with the second generation, the SV3 series features a larger program capacity, enhanced information security, and better interoperability.

  • Min. execution time of basic instruction: 25 ns (adopts 32-bit SoC processor)
  • 64K program capacity
  • Supports the latest DIADesigner programming software (The previous generation ISPSoft software needs to be gradually migrated)
  • 512 points (256 points input + 256 points output in total, including 16 DI and 16 DO), with up to 8 expansion modules installable on both sides
  • Built-in 2 x RS-485, AIO (4AI, 2AO, 12 bits, SX3 models only), Micro SD card
  • Supports EtherNet/IP Scanner/Adapter, Modbus TCP, CANopen DS301
  • CANopen communication exclusive mode, supports up to 8 Delta servo and motor drives for convenient control, without the need to manually create the DS301 data exchange table
