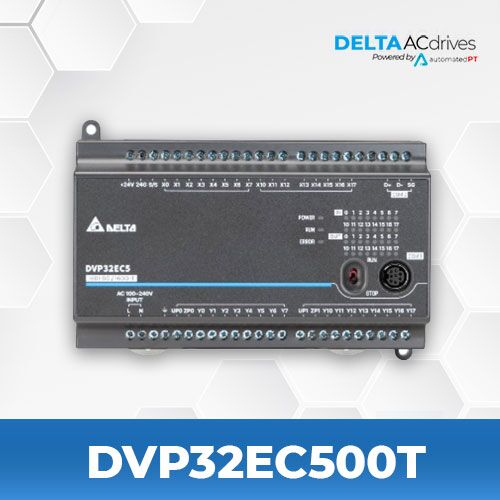

Delta DVP32EC500T DVP-EC Series PLC

  • DVP32EC500T
  • Max Real I/O:32 I/O
  • Program capacity:16k Steps
  • Inputs:16

PRODUCT SPECIFICATIONS

Model Name DVP32EC500T
Series DVP-EC500 Series
Program Capacity 16k Steps
Output Method Transistor (NPN)
Inputs 16
Max I/O Points 32 I/O
Outputs 16
High-speed Counter 4 points high-speed pulse output 50kHz, 2 points high-speed pulse input 50kHz

FILES

Catalog Delta DVP-EC500 Series Catalog

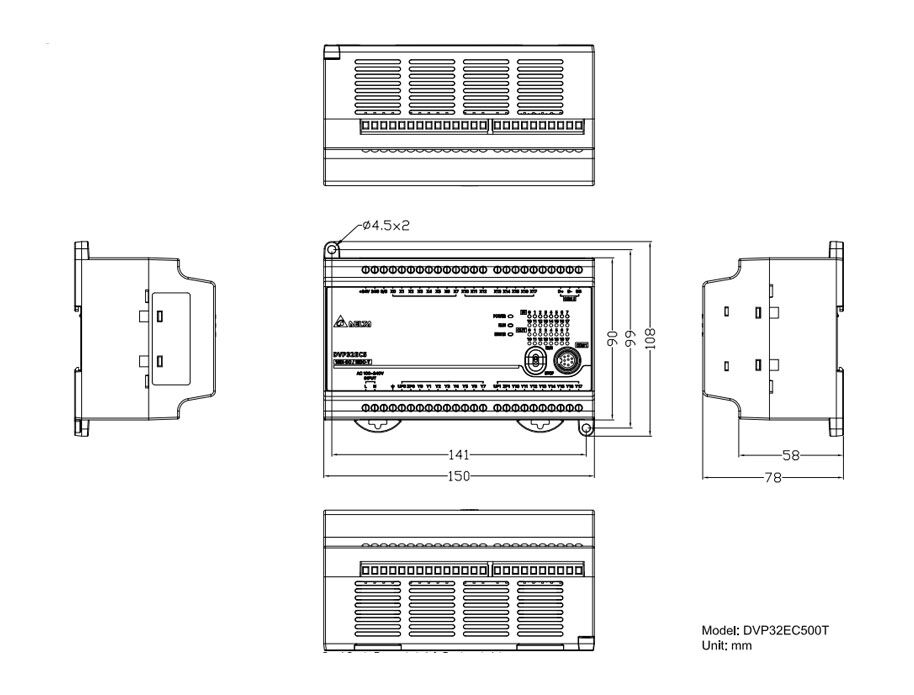

Dimensions Delta DVP32EC500T Dimensions
Instruction Sheet Delta DVP32EC500T Instruction Sheet
2D CAD Delta DVP32EC500T 2D CAD
3D CAD Delta DVP32EC500T 3D CAD  |  (View 3D File)

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The DVP-EC5 Series fulfills the market demand for advanced PLCs with a user-friendly programming interface, faster execution of high-speed pulse input/output, and expanded program capacity. The upgrade from the previous EC-3 aligns with demands for a versatile programmable logic controller.

Features

  • Built-in I/O: 32 / 48 / 60
  • Program capacity: 16 k steps
  • Supports 4 points high-speed pulse output 50 kHz,
    2 points high-speed pulse input 50 kHz
  • 8 points external interrupts
