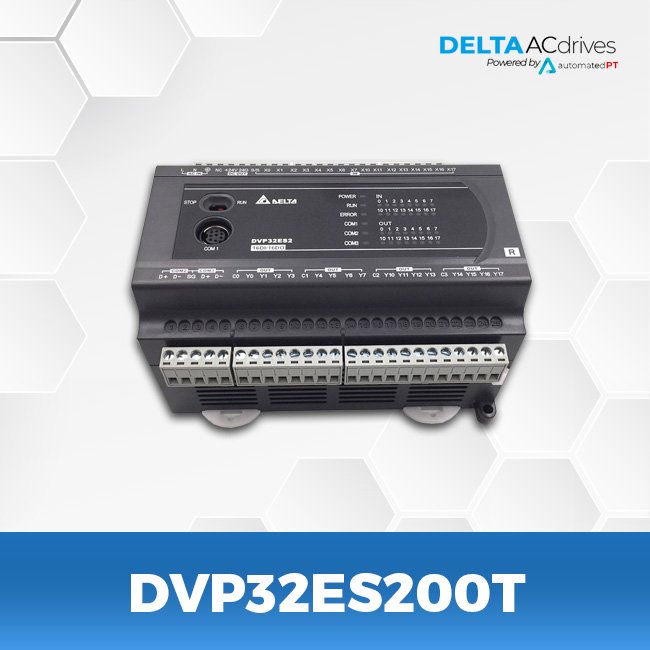

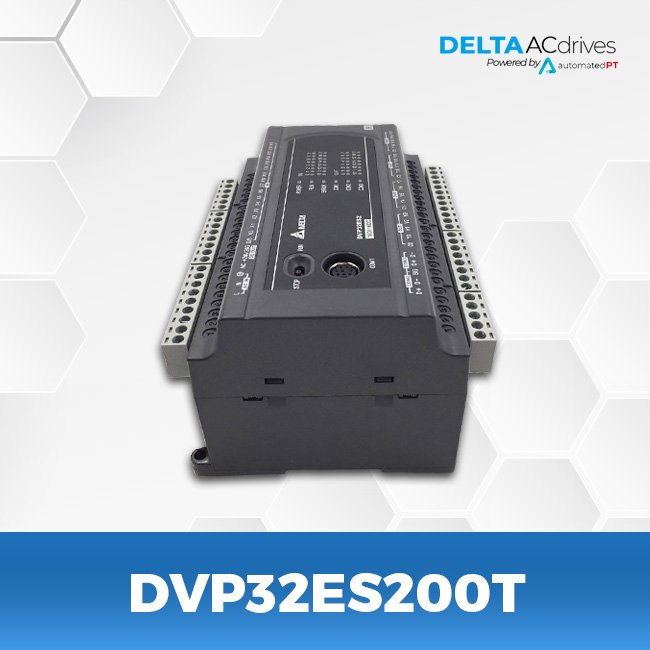

Delta DVP32ES200T DVP-ES Series PLC

  • DVP-ES2 Series
  • Output Method: Transistor (NPN)
  • Program Capacitty: 16k Steps
  • Inputs: 16

PRODUCT SPECIFICATIONS

Model Name DVP32ES200T
Series DVP-ES2 Series
Program Capacity 16k Steps
Output Method Transistor (NPN)
Inputs 16
Max I/O Points 32 I/O
Outputs 16
Communication 1 RS-232 and 2 RS-485 ports

FILES

Catalog Delta DVP-ES2 Series Series Catalog

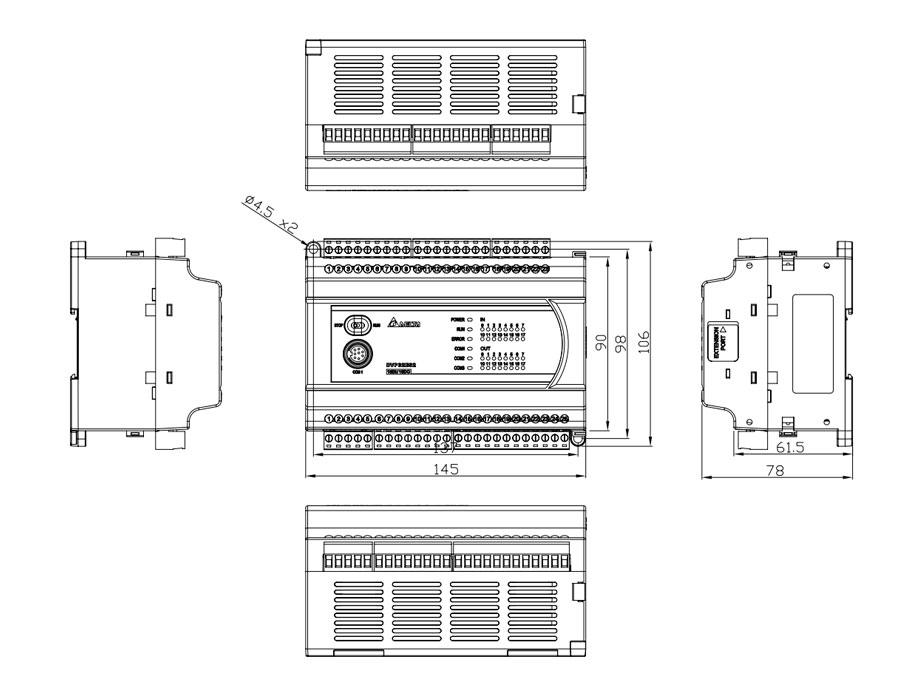

Dimensions Delta DVP32ES200T Dimensions
Instruction Sheet Delta DVP32ES200T Instruction Sheet
2D CAD Delta DVP32ES200T 2D CAD
3D CAD Delta DVP32ES200T 3D CAD  |  (View 3D File)
UL Certificate Delta DVP32ES200T UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Standard PLCs with integrated communication and highly efficient processing ability for your control systems

Features

  • 32-bit CPU for high-speed processing
  • Standard PLC DVP-ES2 Series: 16 / 20 / 24 / 32 / 40 / 60 / 80 I/O points for a variety of applications
  • Analog I/O PLC DVP-EX2:

    • -Built-in 12-bit 4 analog inputs / 2 analog output; and 14-bit analog I/O extension module
    -Built-in PID auto tuning function for a complete analog control solution

  • Built-in 1 RS-232 and 2 RS-485 ports
  • Program capacity: 16 k steps
  • Data register: 10 k words
  • Max. execution speed of basic instructions: 0.35 μs
  • RTC function and file register (5 k words) (hardware version 2.0 and above)
  • Highly efficient processing ability: 1 k steps of programs can be completed within 1ms
  • Max. 100 kHz pulse control; specific motion control instructions (mark/masking and instant frequency changing) available for multi-axis applications
  • Up to 4 levels of password protection secures your source programs and intellectual propert
