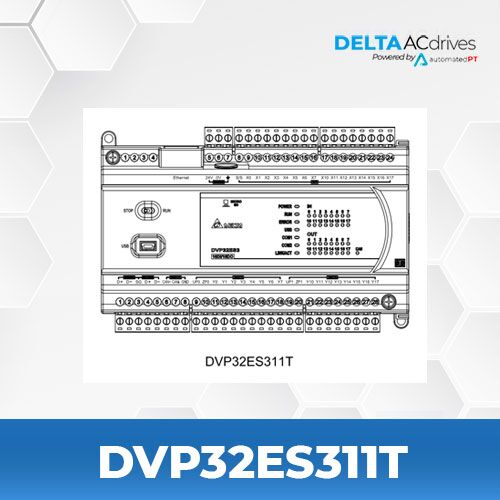

Delta DVP32ES311T DVP-ES Series PLC
- DVP-ES3 Series
- Output Method: Transistor (NPN)
- Program Capacity: 64k Steps
- Inputs: 16
PRODUCT SPECIFICATIONS
| Model Name | DVP32ES311T |
| Series | DVP-ES3 Series |
| Program Capacity | 64k Steps |
| Output Method | Transistor (NPN) |
| Execution Speed | 25 ns, support AS APIs |
| Max I/O Points | 256 points |
| DIO / AIO | 32 I/O |
| SD Card | Micro SDHC, Max. 32G |
| Communication | 1 Ethernet port, 1 CAN port, 2 x RS485 |
FILES
 |
|
| Catalog | Delta DVP-ES3 Series Series Catalog |

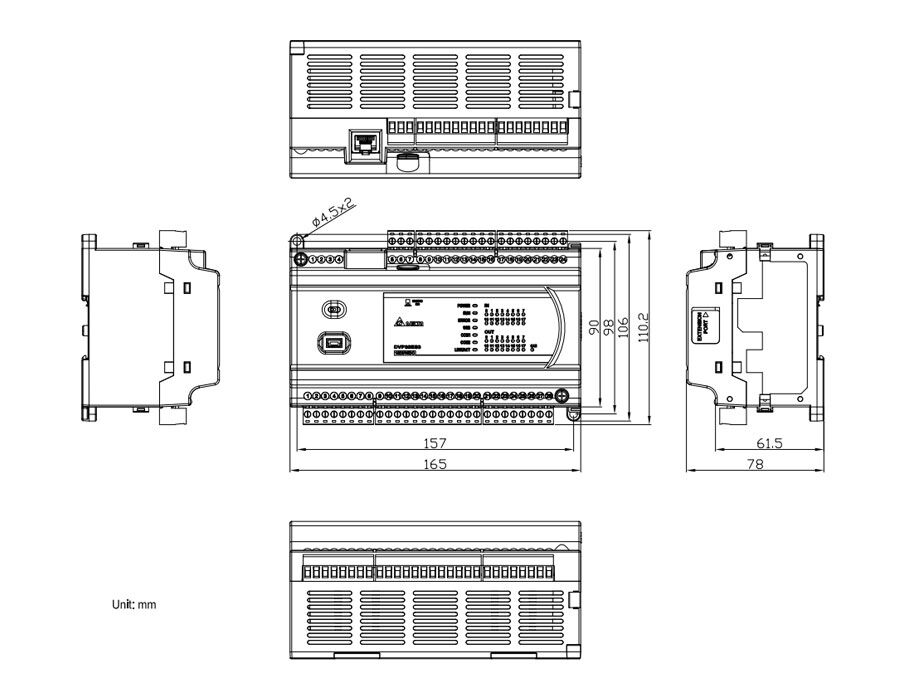

| Dimensions | Delta DVP32ES311T Dimensions |
| Instruction Sheet | Delta DVP32ES311T Instruction Sheet |
| 2D CAD | Delta DVP32ES311T 2D CAD |
| 3D CAD | Delta DVP32ES311T 3D CAD | (View 3D File) |
| UL Certificate | Delta DVP32ES311T UL Certificate |
SOFTWARE
Register and download the DIA Studio to use DIA Designer to program and configure your drives.
Know More
SERIES DESCRIPTION
Delta’s third generation DVP PLCs ES3 series employs the AS series PLC’s 32-bit high-speed processor, provides a user-friendly programming interface, 4 high-speed counter inputs, and up to 4-axis control outputs (pulse). The ES3 series supports 8-axis (CANopen) position outputs (ES3 only) and EtherCAT (ES3-TEC only).
Features also include multiple communication ports with robust network functions that enhance integration and connections. Compared with the previous generation, the ES3 series offers a larger capacity, faster execution speed, and enhanced interoperability.
Min. execution time of basic instruction: 25 ns (adopts 32-bit SoC processor)
- 64k program capacity
- Max. 256 points for I/O (Max. 8 x AIO extension modules)
- Built-in 2 x RS-485, AIO (EX3 models only), Micro SD card
- Supports EtherCAT* (ES3-TEC models only), EtherNet/IP Scanner/Adapter, Modbus TCP, CANopen DS301 (ES3 / EX3 models only)
- CANopen Delta mode (ES3 / EX3 models only), support Max. 8 Delta servos and motors for right / left side expansion without setup of DS301 data exchange table
- EtherCAT Delta mode (ES3-TEC models only), support Delta servos and Delta motor drives up to 16 without setup of EtherCAT topology and configuration (Note: ES3-TEC firmware version V1.08.30 or later version is able to support the 3rd EtherCAT slave devices) Max. 8 slaves
- Built-in dual E thernet ports support dual IP mode
