SPECIFICATIONS

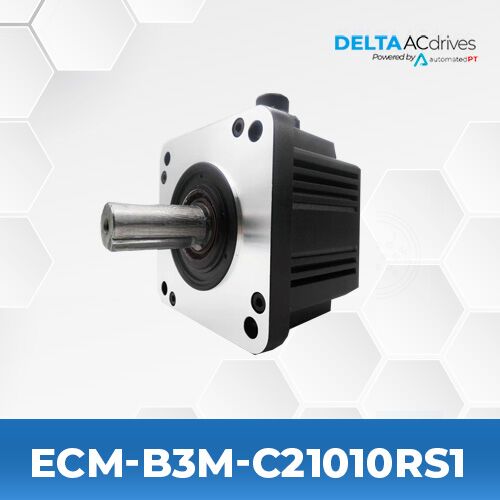

Model Name | ECM-B3M-C21010RS1 |
Motor Series | ECM-B3M Medium Inertia Series |
Output Power | 1 KW |
Torque | 3.18 (N-m) |
Voltage | 220 VAC |
Phase | 1 / 3 (PH) |
Rated Current | 6.05 Arms |
Instant Max Output Current | 18.4 Arms |
SERIES DESCRIPTION
ECM-B3 series is Delta’s newest generation of servo system motor. Compatible with the ASDA-B3 servo drive.
Features Include
- Low and medium inertia options available
- Multiple options for encoder type, brake, oil seal, and shaft
CATALOG & MANUALS
Catalog | Delta ASDA B3 Servo Drive Catalog | |
Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
