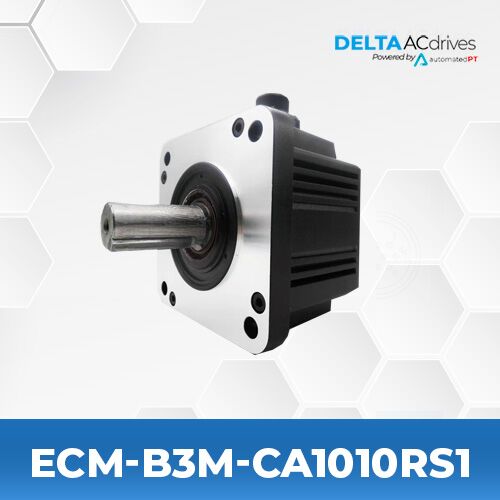

Delta ECM-B3M-CA1010RS1 Servo Motor

$798.00

  • ECM-B3M Medium Inertia Motor Series
  • Drive Resolution: 24-Bit
  • 1 KW
  • No Brake
  • Rated Torque: 3.18 (N-m)

SPECIFICATIONS

Model Name ECM-B3M-CA1010RS1
Motor Series ECM-B3M Medium Inertia Series
Output Power 1 KW
Torque 3.18 (N-m)
Voltage 220 VAC
Phase 1 / 3 (PH)
Rated Current 6.05 Arms
Instant Max Output Current 18.4 Arms

SERIES DESCRIPTION

ECM-B3 series is Delta’s newest generation of servo system motor. Compatible with the ASDA-B3 servo drive.

Features Include

  • Low and medium inertia options available
  • Multiple options for encoder type, brake, oil seal, and shaft

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

COMPATIBLE DRIVES
