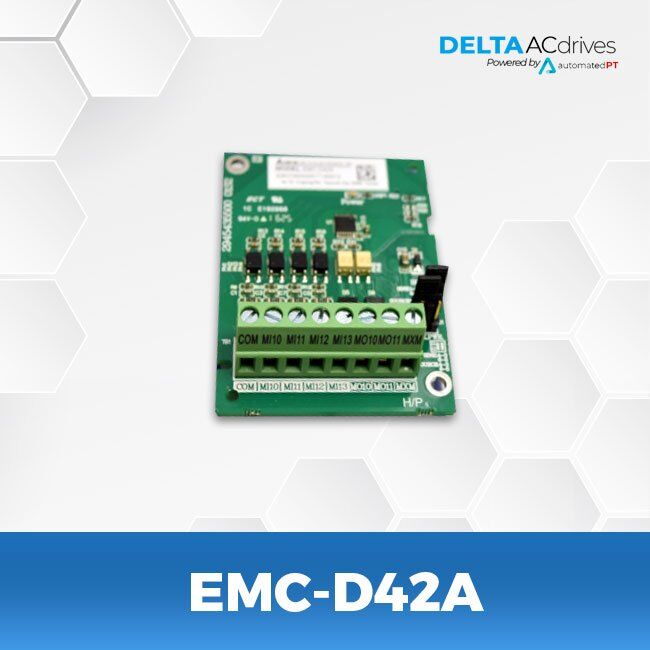

Delta EMC-D42A 4-point digital input / 2-point digital input I/O Extension Card
$47.70
Lead time – 1-2 weeks
- Add on card for CP2000 C2000 CH2000 VFD’s
- 4-point digital input / 2-point digital input I/O Extension Card
SPECIFICATIONS
| Terminals | Description |
| COM | Common for multi-function input terminals Select SINK (NPN)/SOURCE (PNP) in J1 jumper/external power supply |
| MI10~MI13 | Refer to Pr. 02-26~Pr. 02-29 to program the multi-function inputs MI10~MI13 Internal power is applied from terminal E24: +24VDC ± 5% 200mA, 5W External power +24VDC: max. voltage 30VDC, min. voltage 19VDC, 30W ON: the activation current is 6.5mA; OFF: leakage current tolerance is 10μA |
| MO10~MO11 | Multi-function output terminals (photocoupler) Duty-cycle: 50%; Max. output frequency: 100Hz Max. current: 50mA; Max. voltage: 48VDC |
| MXM | Common for multi-function output terminals MO10, MO11 (photocoupler) Max. 48VDC 50mA |
FILES
 | |
| Catalog | Delta C2000 Series Catalog |
| Users Manual | Delta C2000 Series Users Manual |
| Catalog | Delta CP2000 Catalog |
| Users Manual | Delta CP2000 Users Manual |
| Catalog | Delta CH2000 Series Catalog |
| Users Manual | Delta CH2000 Series Users Manual |
PRODUCT DESCRIPTION
I/O Extension Card 4I/2O, Compatible with VFD-C2000, CP2000, CH2000 series.
► Supports SINK (NPN) or SOURCE (PNP) configurations via a J1 jumper or external power supply.
► Supporting up to 48VDC, 50mA, with a max output frequency of 100Hz.
