SPECIFICATIONS
Model Name | EMC-PG01R |
PG1 R1-R2 | Resolver output power 7 Vrms, 10 kHz |
PG1 S1, S2, S3, S4 | Resolver input signal 3.5 ± 0.175 Vrms, 10 kHz |
PG 2 A2, A2  ̄ ̄, B2,  ̄B ̄ | Pulse input signal (Line Driver or Open Collector) Open collector input: +5 V / +24 V *Note1 1-phase or 2-phase input; Max. input frequency: 300 kHz |
PG OUT AO,  ̄A ̄O, BO,  ̄B ̄O, ZO,  ̄Z ̄O, SG | PG card output signals. Division frequency function: 1 ~ 255 times Max. output voltage for Line driver: 5 VDC Max. output current: 15 mA Max. output frequency: 300 kHz SG: The GND of PG card is the same as the host controller or PLC, so a common output signal is attained |
FILES
Catalog | Delta C2000 Series Catalog |
Users Manual | Delta C2000 Series Users Manual |
Catalog | Delta CH2000 Series Catalog |
Users Manual | Delta CH2000 Series Users Manual |
PRODUCT DESCRIPTION

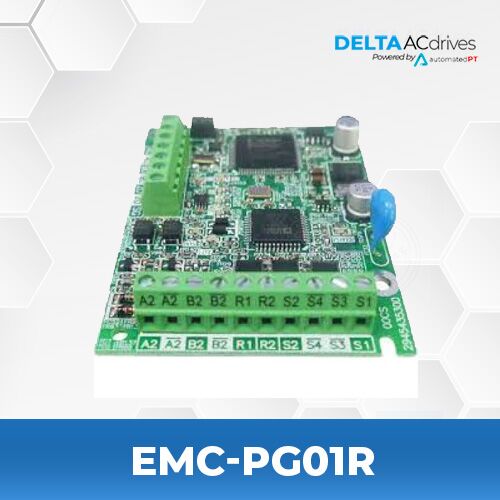

The EMC-PG01R is a precision pulse generator (PG) card designed for resolver and pulse input applications. It features a resolver output power of 7 Vrms at 10 kHz and an input signal range of 3.5 ± 0.175 Vrms at 10 kHz for accurate signal processing. The card supports pulse input signals via a Line Driver or Open Collector, with input voltages of +5V / +24V and a maximum input frequency of 300 kHz, accommodating both 1-phase and 2-phase inputs. For output, the PG OUT terminals provide signals with a configurable division frequency function (1 to 255 times), ensuring flexibility in signal transmission. The maximum output voltage for the Line Driver is 5 VDC, with a current limit of 15 mA and a maximum output frequency of 300 kHz. Additionally, the SG (Signal Ground) of the PG card is shared with the host controller or PLC, ensuring a common output signal for seamless integration into industrial automation systems.
