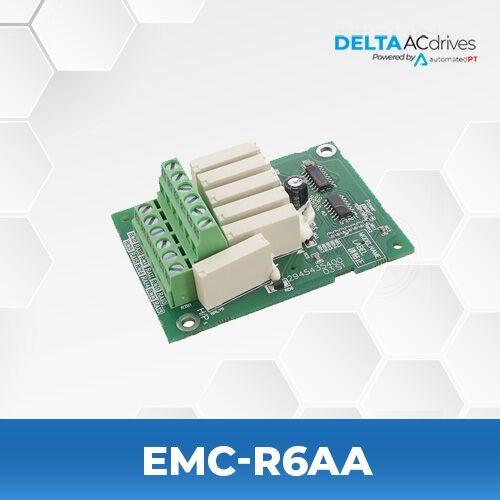

Delta EMC-R6AA 6-point N.O. output contact Relay Card

Delta EMC-R6AA 6-point N.O. output contact Relay Card

$77.40

Lead time – 1-2 weeks

  • Add on card for CP2000 C2000 CH2000 VFD’s
  • 6-point N.O. output contact Relay Card

SPECIFICATIONS

Terminals Descriptions
RA10~RA15 Refer to Pr. 02-36~Pr. 02-41 for multi-function output selection
RC10~RC15 Resistive load:
3A (N.O.)/250VAC
5A (N.O.)/30VDC
DeviceNet protocol
Inductive load (COS 0.4)
1.2A (N.O.)/250VAC
2.0A (N.O.)/30VDC
It is used to output each monitor signal, such as for drive in operation, frequency attained or overload
indication.

FILES

Catalog Delta C2000 Series Catalog
Users Manual Delta C2000 Series Users Manual
Catalog Delta CP2000 Catalog
Users Manual Delta CP2000 Users Manual
Catalog Delta CH2000 Series Catalog
Users Manual Delta CH2000 Series Users Manual

PRODUCT DESCRIPTION

Relay Extension Card 6 Form A

► Compatible with VFD-C2000, CP2000, CH2000 series.
► Supports resistive loads up to 3A (250VAC) and 5A (30VDC), and inductive loads up to 2A (250VAC/30VDC).
► Ideal for signal output applications.
