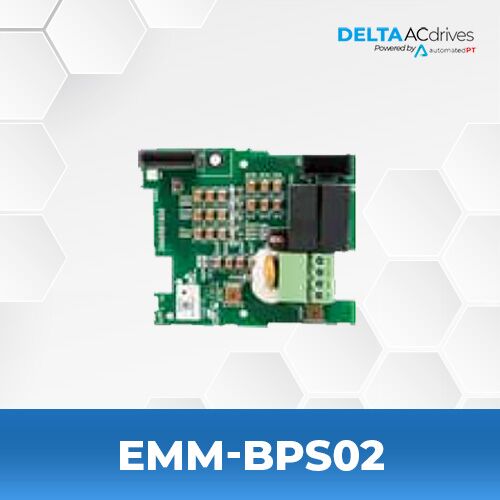

When the AC motor drive power is off, the external power supply card provides external power to the network system, PLC function, and other functions to allow continued operations.
Input power: 24V ± 5%
Maximum input current: 0.5A
Note:
1) Do not connect the control terminal +24V (Digital control signal common: SOURCE) directly to the EMC-BPS01 input terminal 24V.
2) Do not connect control terminal GND directly to the EMC-BPS01 input terminal GND in oder to achieve good isolation.
Note 1: For the Open Collector, set input voltage to 5~15mA and install a pull-up resistor
[5V] Recommend pull-up resistor: 100~220Ω, 1/2W and above
[12V] Recommend pull-up resistor: 510~1.35KΩ, 1/2W and above
[24V] Recommend pull-up resistor: 1.8K~3.3KΩ, 1/2W and above
