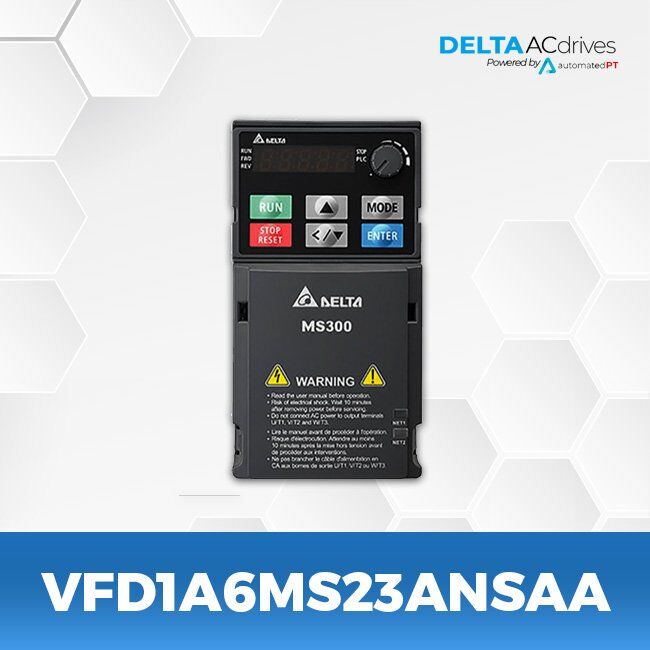

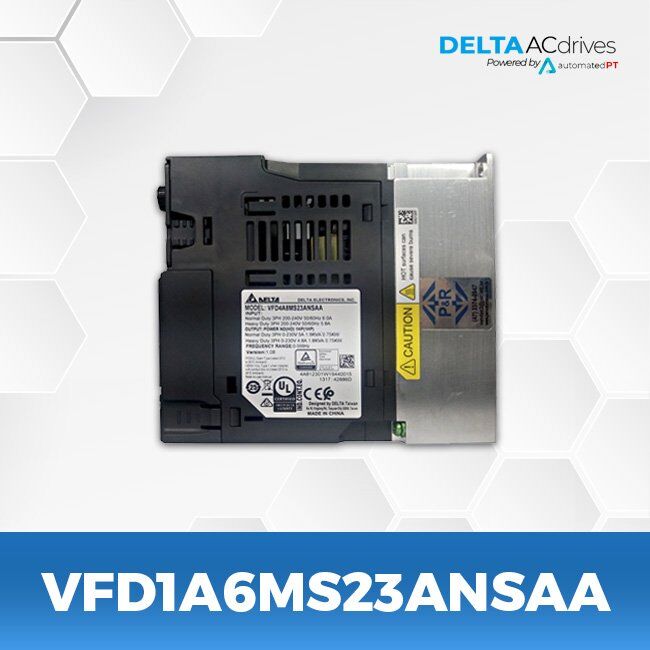

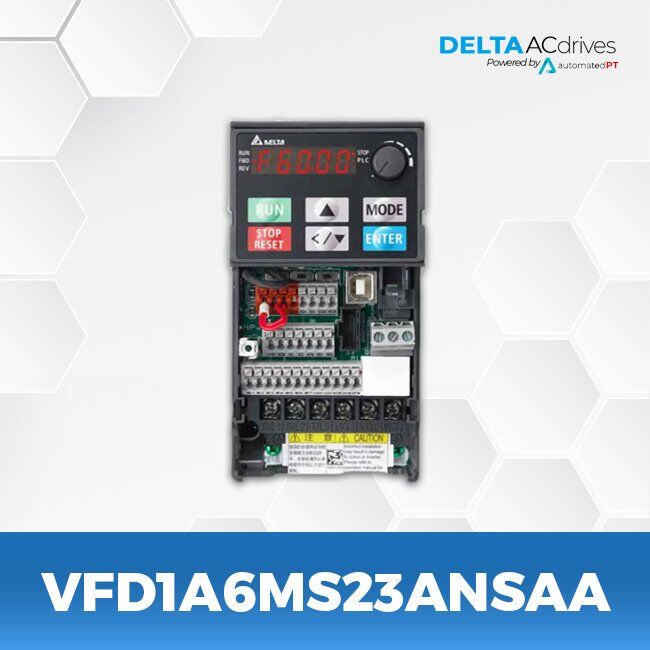

Delta VFD1A6MS23ANSAA VFD-MS300 Series Drive


  • Series: VFD-MS300
  • 0.25 HP
  • 0.2 KW
  • 230 V
  • 1.6 A
  • Input: 3 PH

Standard Models (0-599 Hz) Without EMC Filter

Part Number: Delta VFD1A6MS23ANSAA
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
HP: 0.25 HP
Amps (HD): 1.6A
Amps (ND): 1.8A
Input Phase : 3 PH
Operator Controls: Sold Separately, See Accessories
Brake Type: DC Injection; Dynamic Braking
Motor Control-Max Level: Open Loop Vector-(Sensorless Vector)
Closed Loop: NO
AC Line Regenerative: NO
Dynamic Braking Trans: Included
Enclosure Rating: IP20
Frame Size: A1

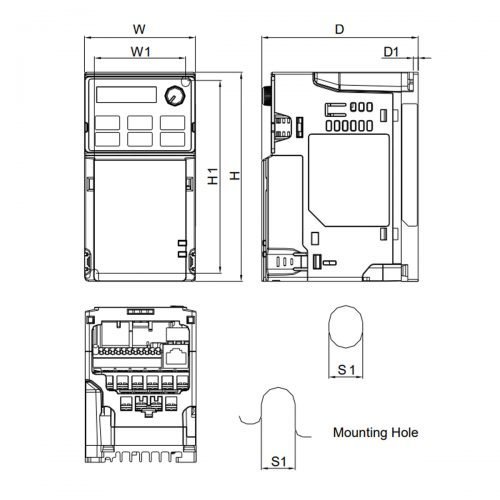

Height: 5.04 Inches
Width: 2.68 Inches
Depth: 3.78 Inches
Net Weight: 3 Lbs.

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system, all included in the MS300 series with drive size reduced up to 40%.

Delta VFD MS300 Micro Drive Accessories

Item #
CMM-COP01 MS300 CANopen Communication Card
CMM-PD01 MS/MH300 Profibus DP Communication Card
CMM-DN01 MS/MH300 DeviceNet Communication Card
CMM-MOD01 MS/MH300 Modbus TCP Communication Card
CMM-EIP01 MS/MH300 EtherNet/IP Communication Card
EMF10AM23A EMC Filter, 10A, 230V 3 Phase
MKM-CBA0 NEMA 1 Kit, VFD-MS/MH300, Frame A1 and A2
MKM-DRB DIN Rail Kit, VFD-MS/MH300, Frame A or B
MKM-MAPB Feed through Wiring Mounting Adapter Plate Kit, Frame A and B
BR080W750 Resistor 80W 750 Ohm


Catalog Delta VFD-MS300 Drive Catalog
Users Manual Delta VFD-MS300 User Manual
