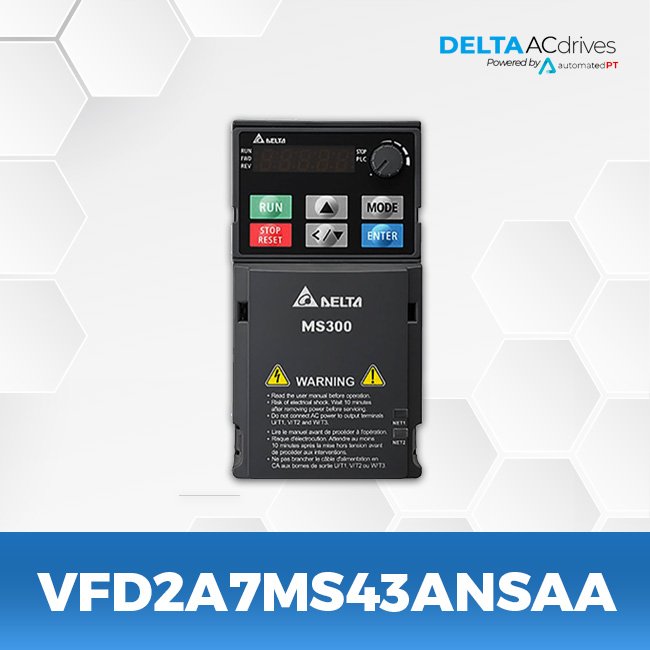

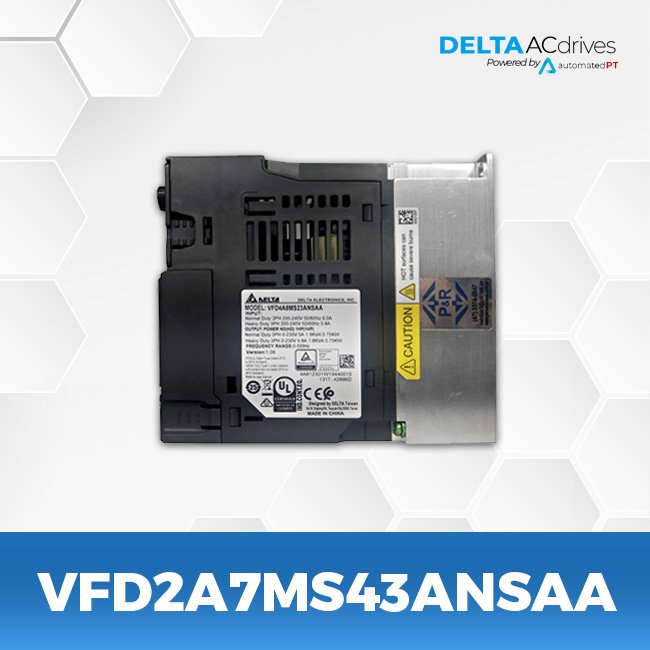

Delta VFD2A7MS43ANSAA VFD-MS300 Series Drive

  • Series: VFD-MS300
  • 1 HP
  • 0.75 KW
  • 480 V
  • 2.7 A
  • Input: 3 PH

Standard Models (0-599 Hz) Without EMC Filter

Part Number: VFD2A7MS43ANSAA
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP: 1 HP
Amps (HD): 2.7A
Amps (ND): 3.0A
Input Phase : 3 PH
Operator Controls : Sold Seperately, See Accessories
Brake Type : DC Injection; Dynamic Braking
Motor Control-Max Level: Open Loop Vector-(Sensorless Vector)
Closed Loop: NO
AC Line Regenerative: NO
Dynamic Braking Trans: Included
Enclosure Rating: IP20

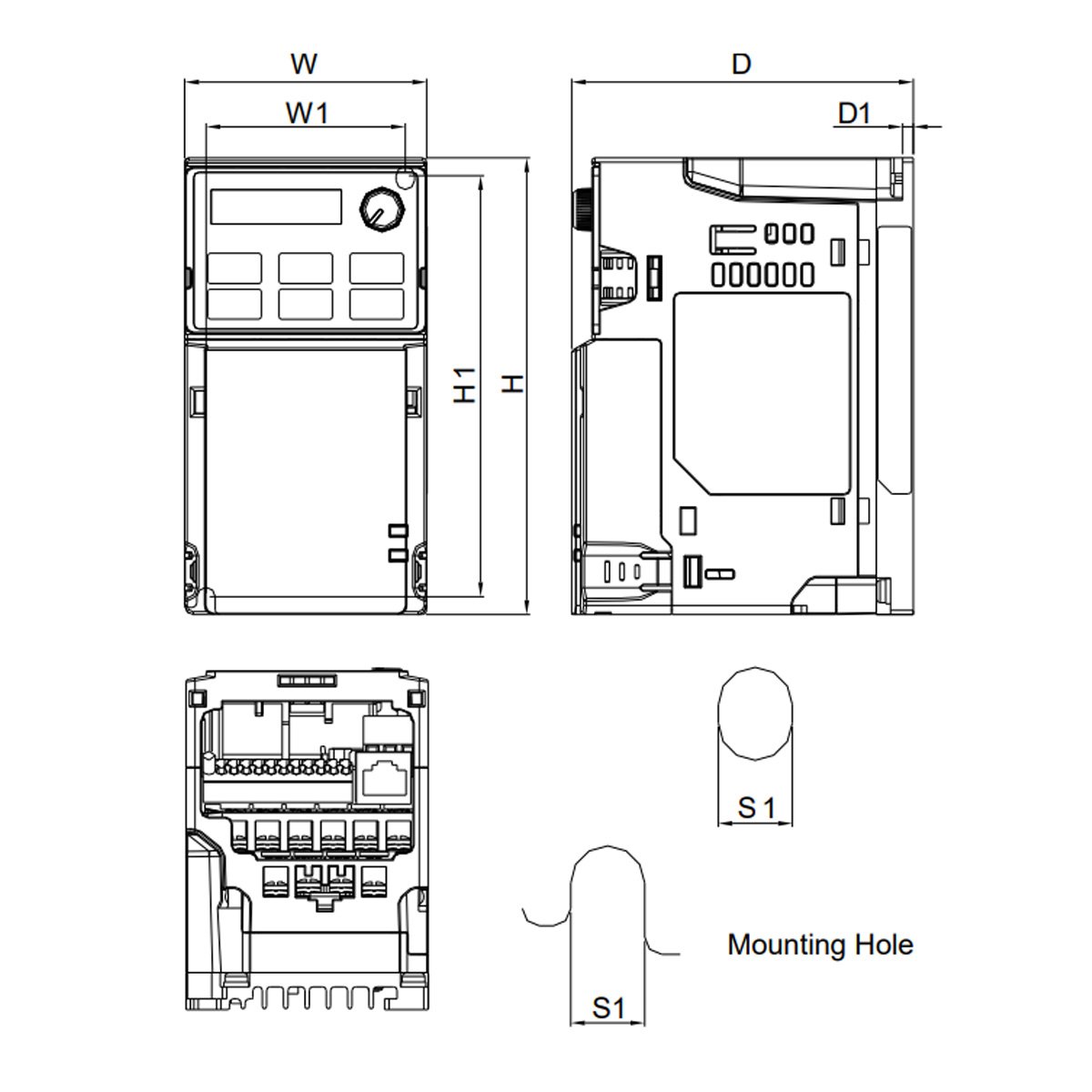

Frame Size : A5
Height: 5.04 Inches
Width: 2.68 Inches
Depth: 5.63 Inches
Net Weight: 4 Lbs.

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system ,all included in the MS300 series with drive size reduced up to 40%.

Delta VFD MS300 Micro Drive Accessories

Item #
CMM-COP01 MS300 CANopen Communication Card
CMM-PD01 MS/MH300 Profibus DP Communication Card
CMM-DN01 MS/MH300 DeviceNet Communication Card
CMM-MOD01 MS/MH300 Modbus TCP Communication Card
CMM-EIP01 MS/MH300 EtherNet/IP Communication Card
EMF6A0M43A EMC Filter, 6A, 460V 3 Phase
MKM-CBA NEMA 1 Kit, VFD-MS/MH300, Frame A3, A4 and A5
MKM-DRB DIN Rail Kit, VFD-MS/MH300, Frame A or B
MKM-MAPB Feed through Wiring Mounting Adapter Plate Kit, Frame A and B
BR080W750 Resistor 80W 750 Ohm

Click on the links below to see Drawings and Specs:
MS300 Cut Sheet
