PRODUCT SPECIFICATIONS

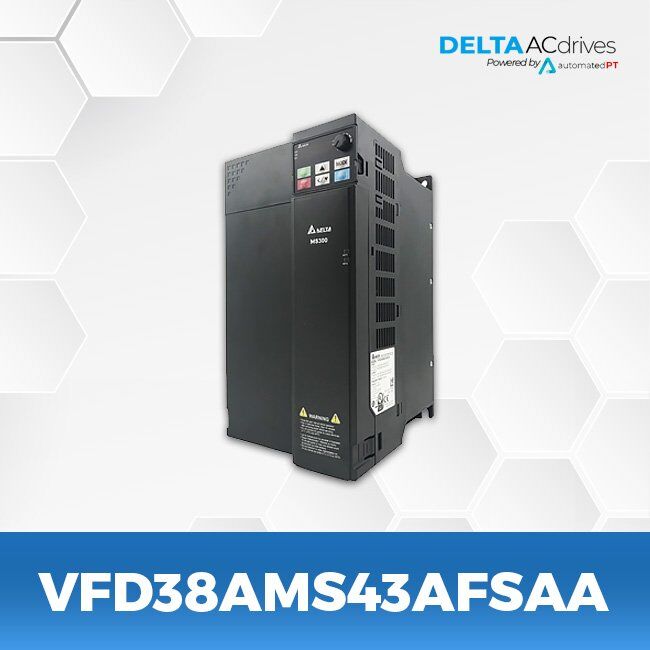

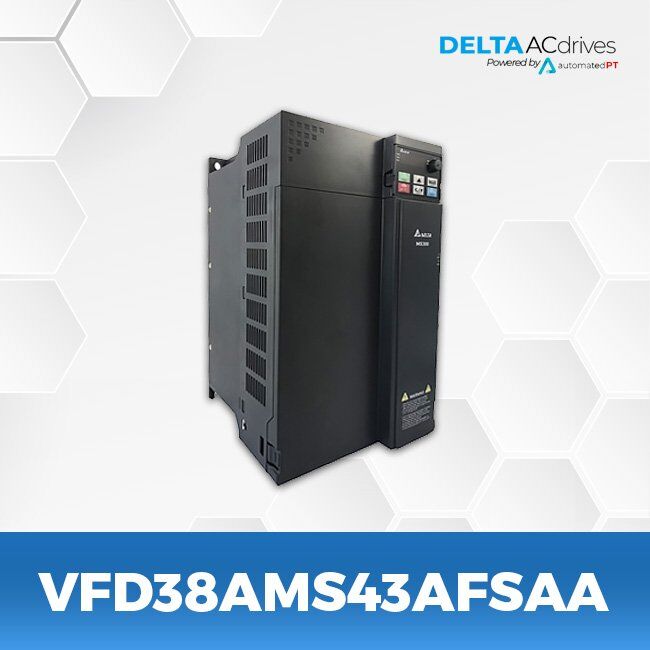

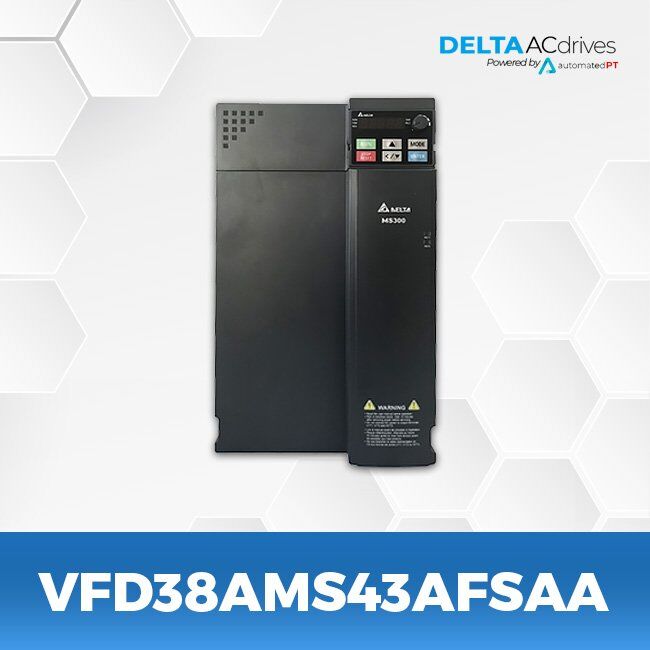

Model Name	VFD38AMS43AFSAA
Series	MS-300 Series
Input Voltage – Phase	460 V – 3 Phase
Motor Power Range	25 HP – 18.5 KW
Frequency	0 – 599 Hz
Frame Size	F2
IP Level	IP 20
EMC Filter	Built-in
*Normal Duty Amps**	41.5 A
Heavy Duty Amps :**	38 A
Weight	19 Lbs

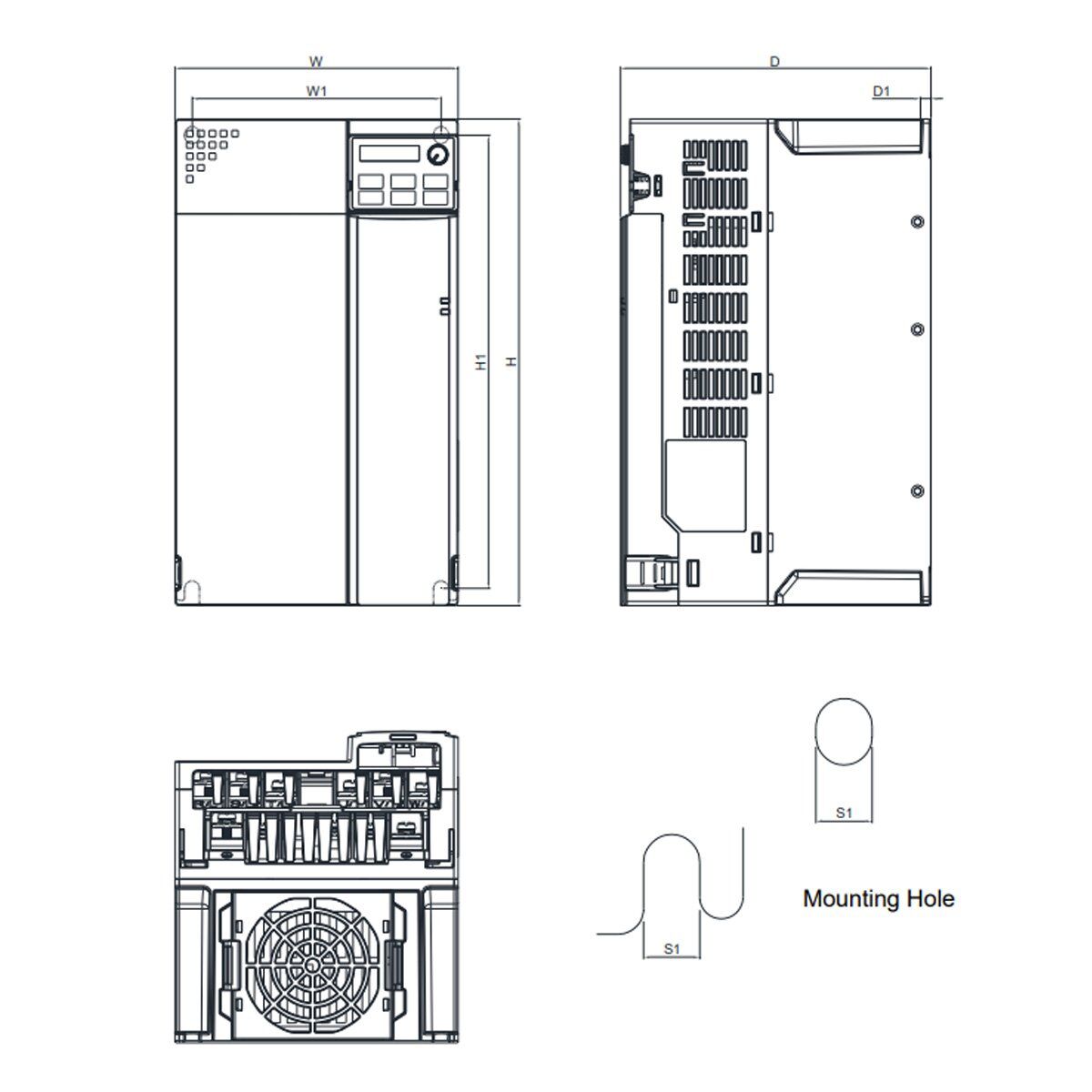

Dimensions	6.89 (in) x 11.81 (in) x 9.61 (in)

* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds

FILES


Catalog	Delta MS-300 Series Catalog
Users Manual	Delta MS 300 Series Users Manual
Dimensions	Delta VFD38AMS43AFSAA Dimensions
2D-CAD File	Delta VFD38AMS43AFSAA 2D CAD
3D-CAD File	Delta VFD38AMS43AFSAA 3D CAD
Energy Efficiency Report	Delta VFD38AMS43AFSAA Energy Efficiency Report
UL Certification	Delta VFD38AMS43AFSAA UL Certification

SOFTWARE

SERIES DESCRIPTION

The MS300 is Delta’s compact vector control drive line.

Optimized Space Utilization
Compact Design | Side-by-Side Installation

Communication Options

Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation

Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)
