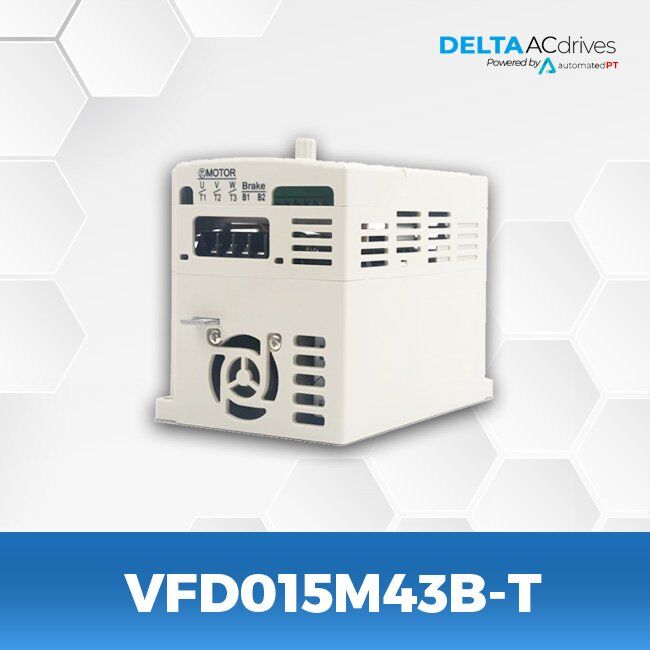

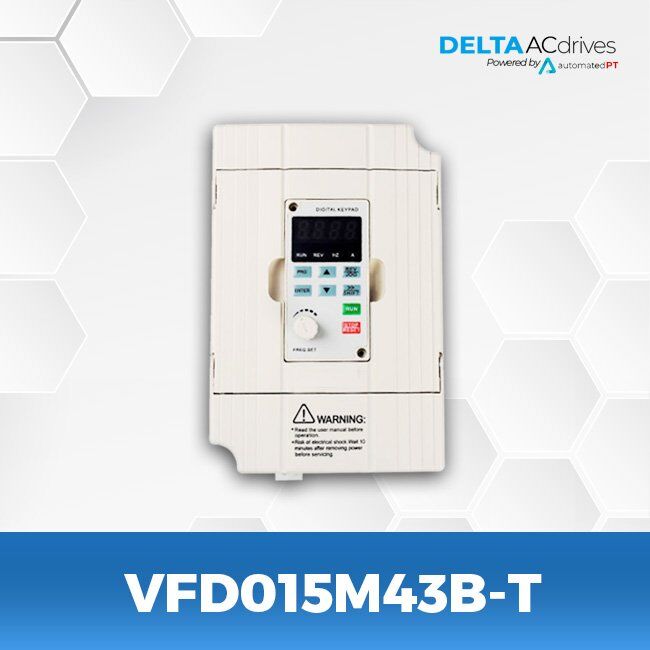

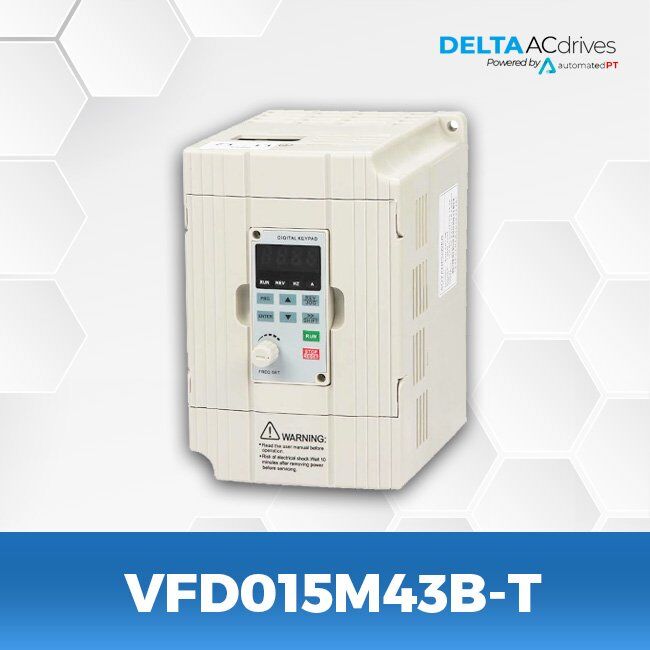

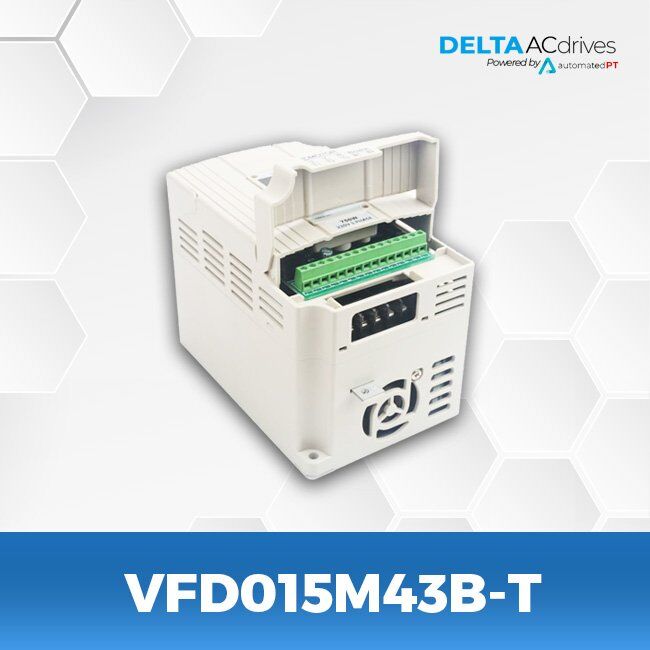

Delta VFD015M43B-T VFD-M Series Drive

  • Series: VFD-M
  • 2 HP
  • 1.5 KW
  • 460 V
  • 4 A
  • Input: 3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD4A2MS43ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.

Delta VFD015M43B-T – SVC Micro Drives

Delta Products
AC Drives, VFD-M Series

ITEM # VFD015M43B-T
MFG # VFD015M43B-T
Series VFD-M

Drive, AC, 2Hp, 460V Three Phase Input

Specifications
Item Number: VFD015M43B-T
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-M
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 2 Horsepower
Amps (CT): 4 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 400 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

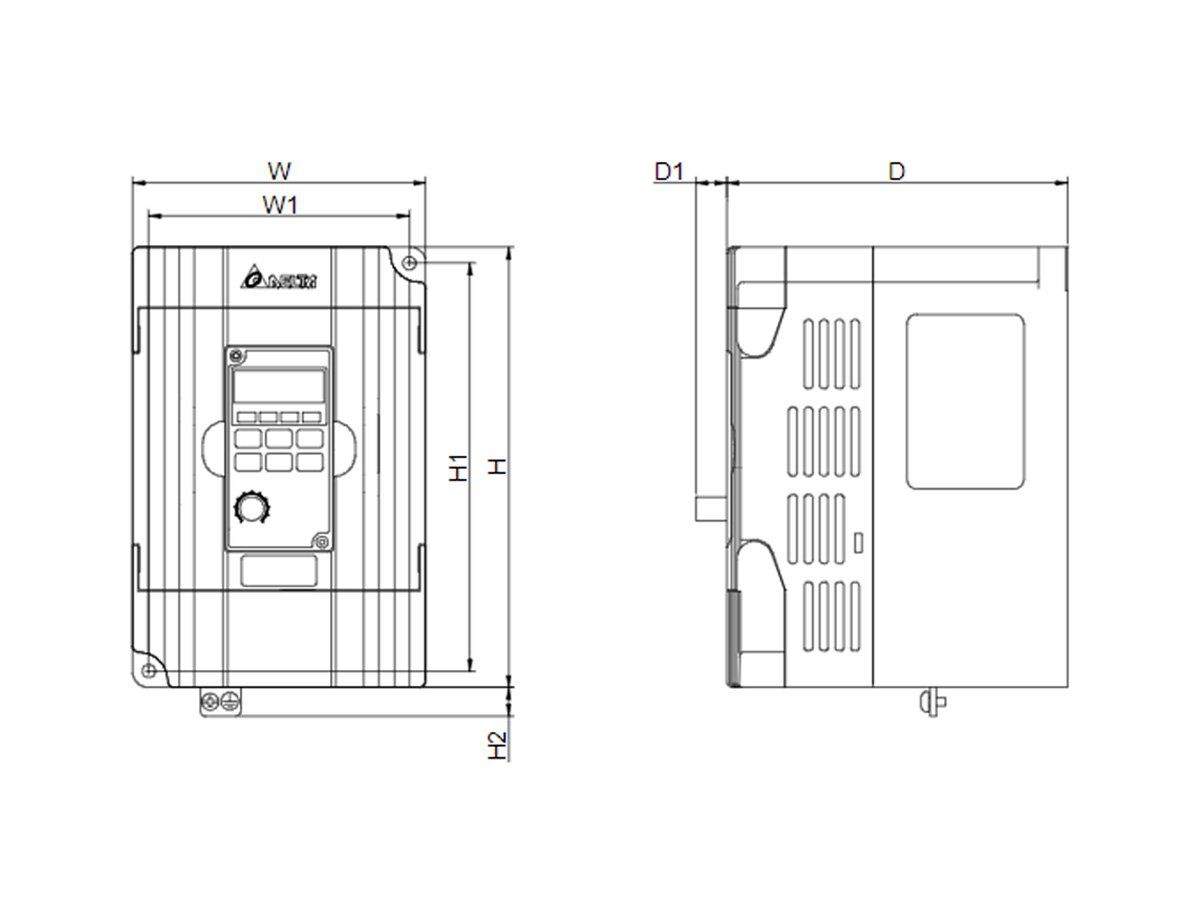

Click on the links below to see Drawings and Specs:

Delta VFD-M-Catalog

Delta VFD-M-User-Manual

Delta VFD-M-A-PD 006 Spec Sheet
