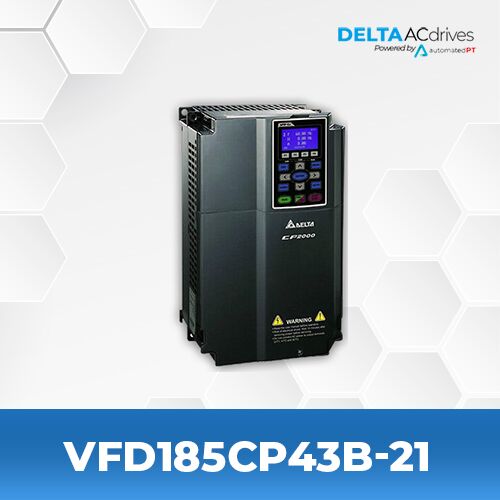

Delta VFD185CP43B-21 CP2000 Series Drive
- Series: VFD-CP2000
- 22 HP
- 18.5 kW
- 38 A
- 460 V
- Input: 3 PH
SPECIFICATIONS
| Model Name | VFD185CP43B-21 |
| Series | CP2000 |
| Input Voltage – Phase | 460 V – 3 Phase |
| Motor Power Range | 22 HP – 18.5 kW – 38 Amps |
| Weight | 13.2 lbs |

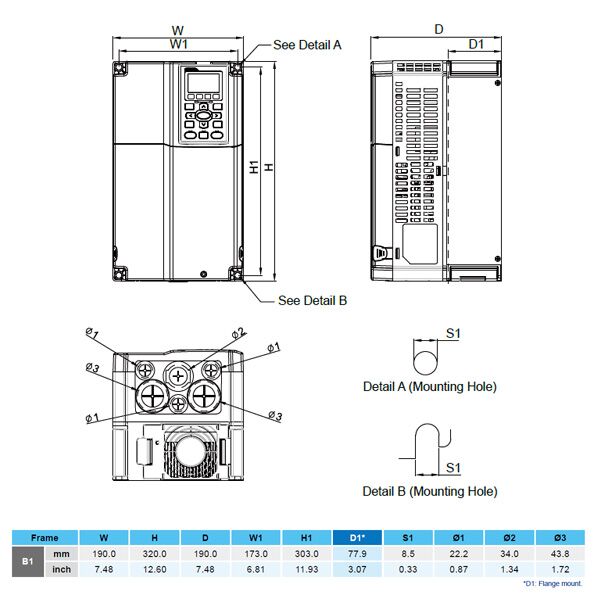

| Dimensions | 7.48in (W) X 12.6in (H) X 7.48in (D) |
Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.
CATALOG & MANUALS
 |
||
| Catalog | Delta CP2000 Drive Catalog | |
| Users Manual | Delta CP2000 Drive Users Manual |
SERIES DESCRIPTION
Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.
Features Include:
High Performance Variable Frequency Drive Technology
Sensorless Vector Control (SVC) | Dual rating design (Light duty & Normal duty) | Excellent variable torque control of asynchronous motors
Modular Design
Hot pluggable LCD keypad | I/O extension card | Various communication cards | Removable fans
Environmental Adaptability
50°C operation temperature | Built-in DC choke | Coated circuit boards | Built-in EMC filter | International safety standard CE/UL/cUL
