SPECIFICATIONS

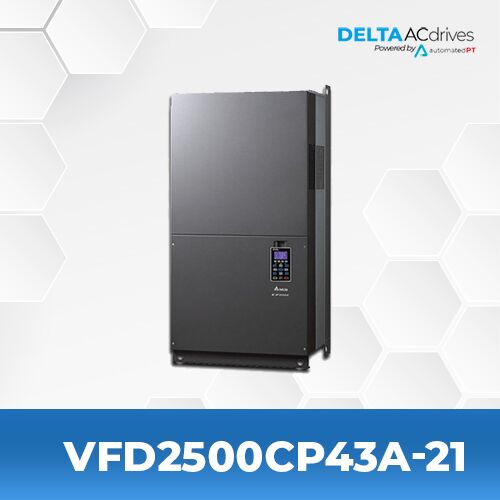

Model Name | VFD2500CP43A-21 |
Series | CP2000 |
Input Voltage – Phase | 460 V – 3 Phase |
Motor Power Range | 340 HP – 250 kW – 481 Amps |
Weight | 298 lbs |

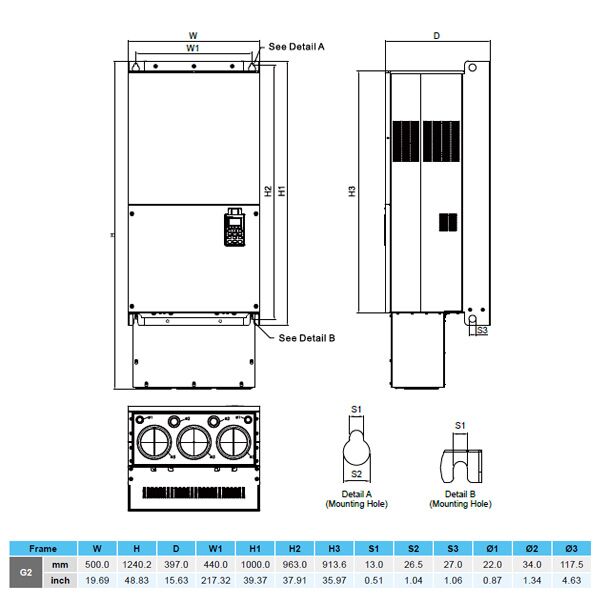

Dimensions | 19.69in (W) X 48.83in (H) X 15.63in (D) |
Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.
CATALOG & MANUALS
Catalog | Delta CP2000 Drive Catalog | |
Users Manual | Delta CP2000 Drive Users Manual |
SERIES DESCRIPTION
Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.
Features Include:
High Performance Variable Frequency Drive Technology
Sensorless Vector Control (SVC) | Dual rating design (Light duty & Normal duty) | Excellent variable torque control of asynchronous motors
Modular Design
Hot pluggable LCD keypad | I/O extension card | Various communication cards | Removable fans
Environmental Adaptability
50°C operation temperature | Built-in DC choke | Coated circuit boards | Built-in EMC filter | International safety standard CE/UL/cUL
