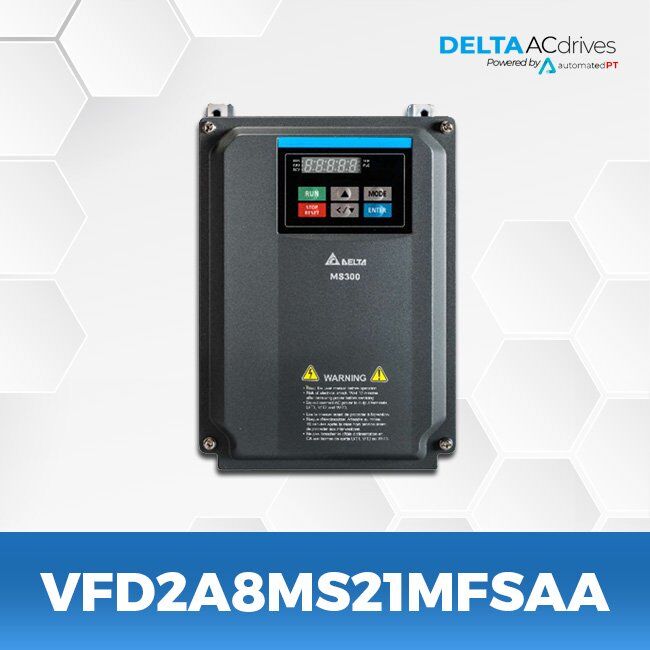

Delta VFD2A8MS21MFSAA MS300 Series Drive

$591.41

  • Series: MS-300
  • 230 V
  • 1 Phase
  • 0.5 HP
  • 0.4 KW
  • 0 – 599 Hz
  • IP 66
  • Built-in EMC Filter
  • Heavy Duty Output: 2.8 A
  • Normal Duty Output: 3.2 A


PRODUCT SPECIFICATIONS

Model Name VFD2A8MS21MFSAA
Series MS-300 Series
Input Voltage – Phase 230 V – 1 Phase
Motor Power Range  0.5 HP – 0.4 KW
Frequency 0 – 599 Hz
Frame Size A1
IP Level IP 66
EMC Filter Built-in
Normal Duty* Amps 3.2 A
Heavy Duty** Amps : 2.8 A
Weight 5 Lbs

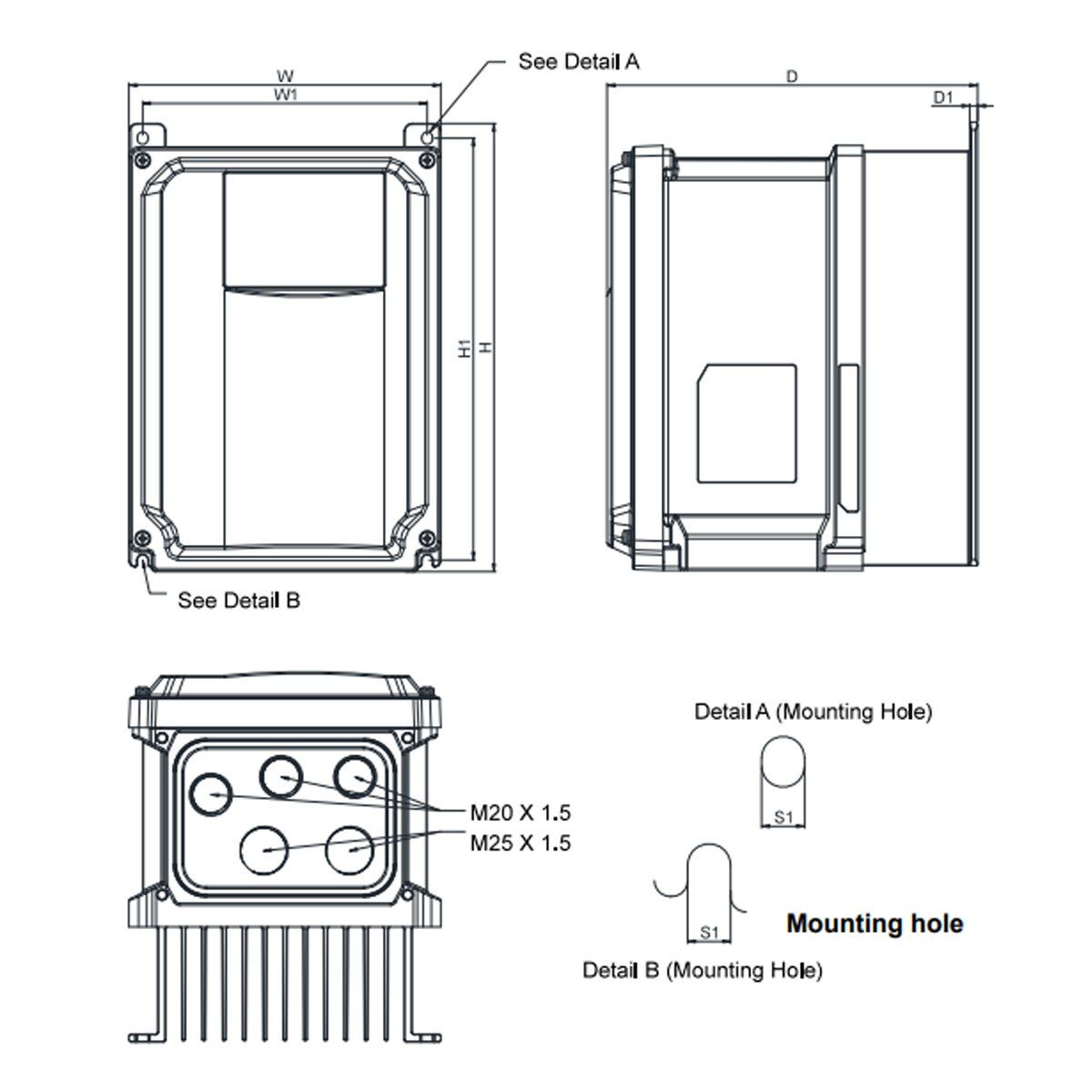

Dimensions 6.3 (in) x 9.06 (in) x 5.94 (in)

* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The MS300 is Delta’s compact vector control drive line.

Optimized Space Utilization
Compact Design | Side-by-Side Installation

Communication Options

Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation

Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)

Strong System Support
Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control

Wide Range of Applications
Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines

Got a Question? We're Here To Help


Compatible Accessories

$22.50

  • Braking Resistor
  • For 80 Watts VFD's
  • 200 Ohm Resistance
  • Compatible With C2000, MS300, CP2000 Series, ME300

$27.00

  • MS/MH300 Communication Card Connection Cable
  • CMM-xxx02 Frames A and B

Out of stock

  • Compatible with Delta VFD MS-300
  • Complies with CiA 402 standard
  • 4 sets of RX/TX PDO
  • Supports Delta protocol, DMCNET
  • Dual communication ports

$137.00

  • Compatible with MS-300 Series
  • Network protocol: DeviceNet
  • Interface: Terminal block
  • Transmission method: Explicit message/Implicit message
  • Transmission cable: Delta standard

$148.50

  • Compatible with MS-300 Series
  • EtherCAT Communication Card
  • Check drive status & edit parameters
  • Supports remote I/O function

$103.00

  • Compatible with Delta VFD MS-300
  • Supports max. 32 words input and 32 words output of I/O connection
  • IP Filter, basic firewall function
  • User-defined parameter mapping
  • Supports DLR ring nodes

Out of stock

  • Supports remote I/O function
  • Supports PZD cyclic data exchange
  • Network protocol: PROFIBUS DP
  • Supports user diagnosis function
  • Auto-detects baud rates; supports Max.12 Mbps.

$24.30

  • 3 Meter Serial Keypad Extension Cable
  • Compatible with MS-300, MH-300, ME-300, VFD-EL VFD-B, VFD-M, VFD-F, VFD-E Series drives

Out of stock

  • Compatible with MS-300 Series
  • 24V Power Shift Card
  • Input power: 24V ± 5%
  • Maximum input current: 0.5A

Out of stock

  • Replacement Keypad for MS300 Drives
  • Designed for non-PLC installations
  • Commonly used in manual brew house control panels and portable pumps with Delta's MS300 series speed controllers
  • No programming required
  • Easily swapped out with a small Phillips screwdriver

$34.20

  • NEMA 1 Kit
  • For Frame A1 and A2
  • Compatible With VFD-MS/MH300 Series

$9.90

  • DIN Rail Kit
  • For Frame A or B
  • Compatible with MS300 Drive

$68.40

  • Feed through Wiring Mounting Adapter Plate Kit
  • For Frame A or B
  • Compatible with MS300 Drive

$228.38

  • Disconnect Switch Kit
  • Compatible with MS300
  • For Frame A

Out of stock

  • Zero-phase reactors reduce inverter wiring noise.
  • Wiring passes through the reactor to filter RF noise.
  • Loop wires three times for full filtering.
  • Use up to four reactors for larger wires.
  • Filters reduce noise on input/output sides.
  • Effective from AM band to 10 MHz.
