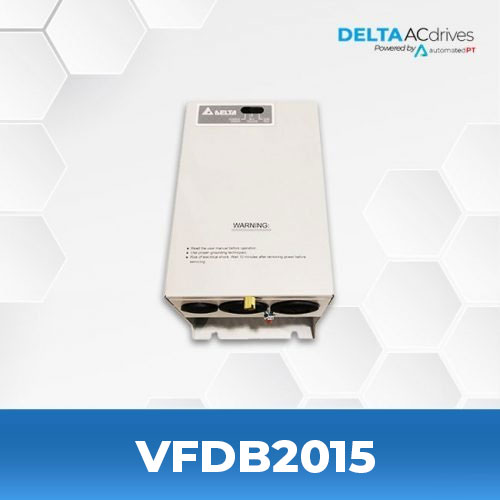

Delta VFDB2015 Brake Unit

  • Compatible with 230V Delta VFDs
  • Max. Motor Capacity: 15 KW

SPECIFICATIONS

Model Name VFDB2015
Compatible VFD Voltage 230V Series
Max. Motor Capacity 15 KW
Max. Discharge Current 40 Amps
Continuous Discharge Current 15 Amps
Min. Equivalent Resistor 10 Ω

FILES

Instruction Sheet Delta VFDB2015 Instruction Sheet
2D CAD Delta VFDB2015 2D CAD
3D CAD Delta VFDB2015 3D CAD  |  (View 3D File)

PRODUCT DESCRIPTION

VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
