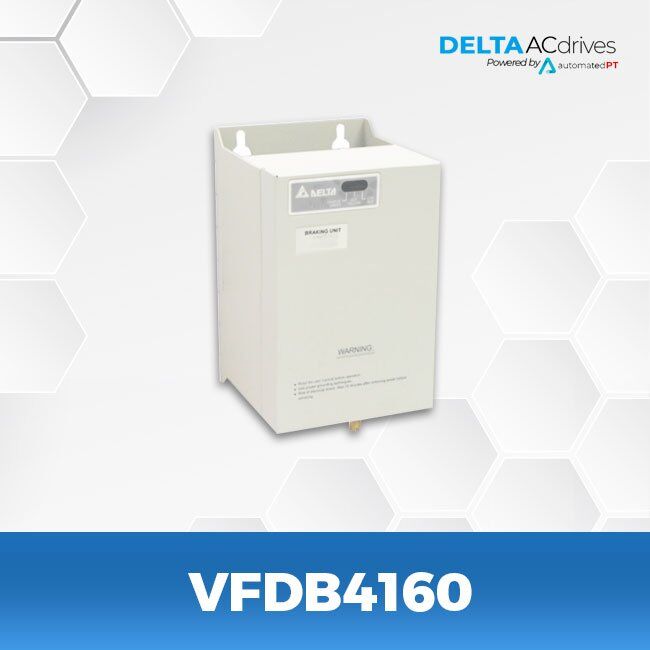

Delta VFDB4160 Brake Unit

$1,656.70

Lead time – 1-2 weeks

  • Compatible with 460V Delta VFDs
  • Max. Motor Capacity: 160 KW

SPECIFICATIONS

Model Name VFDB4160
Compatible VFD Voltage 460V Series
Max. Motor Capacity 160 KW
Max. Discharge Current 190 Amps
Continuous Discharge Current 50 Amps
Min. Equivalent Resistor 4 Ω

FILES

Instruction Sheet Delta VFDB4160 Instruction Sheet

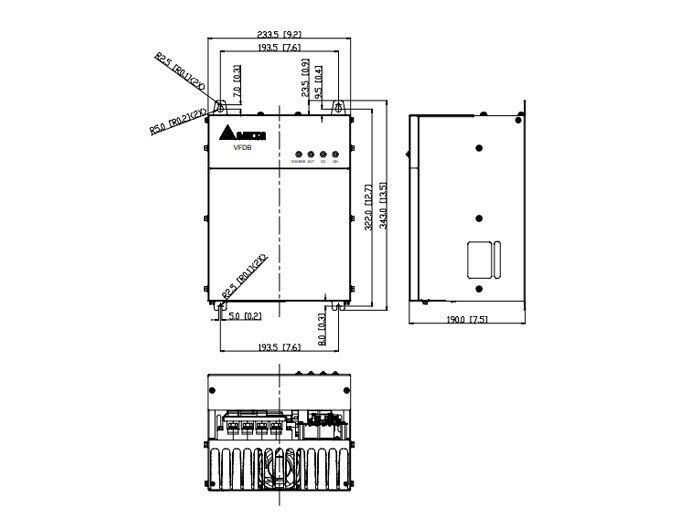

2D CAD Delta VFDB4160 2D CAD
3D CAD Delta VFDB4160 3D CAD  |  (View 3D File)

PRODUCT DESCRIPTION

VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
