Delta VFD146MH23ANSAA MH300 Series Drive
- Series: MH-300
- 50 HP
- 37 KW
- 146 A
- 230 V
- Input: 3 PH
SPECIFICATIONS
| Model Name | VFD146MH23ANSAA |
| Series | MH-300 Series |
| Input Voltage – Phase | 230 V – 3 Phase |
| Motor Power Range | 37 KW – 50 HP – 146 A |
| Weight | 73 lbs |

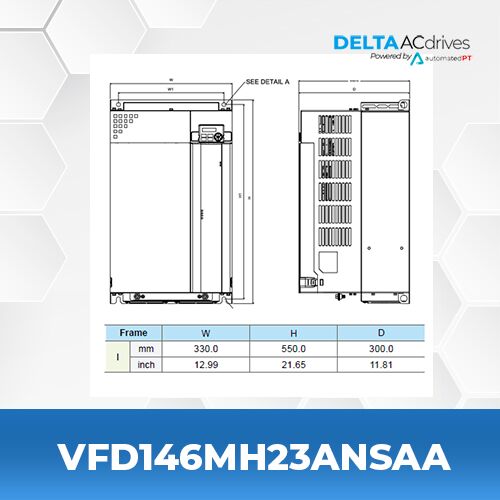

| Dimensions | 12.99 in (W) x 21.65 in (H) x 11.81 in (D) |
CATALOG & MANUALS
 |
||
| Catalog | Delta MH300 Series Catalog | |
| Users Manual | Delta MH-300 Series Users Manual |
SERIES DESCRIPTION
The MH300 series is the new generation high performance compact vector control drive that inherits Delta’s drive technology with more advanced functions included for higher application flexibility — all in a compact drive that has been reduced 71% in size.
Features Include:
Optimized Space Utilization
Compact Design | Side-by-Side Installation
Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)
Strong System Support
Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control | Various Communications
Wide Range of Applications
Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines
