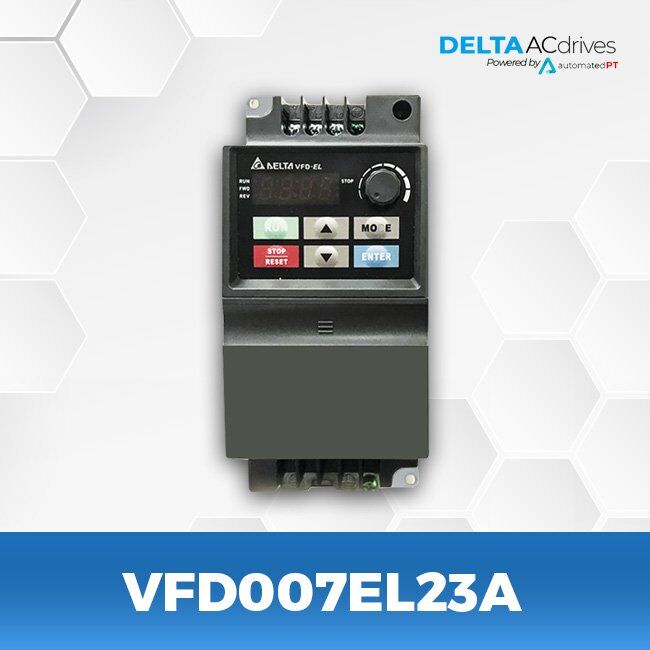

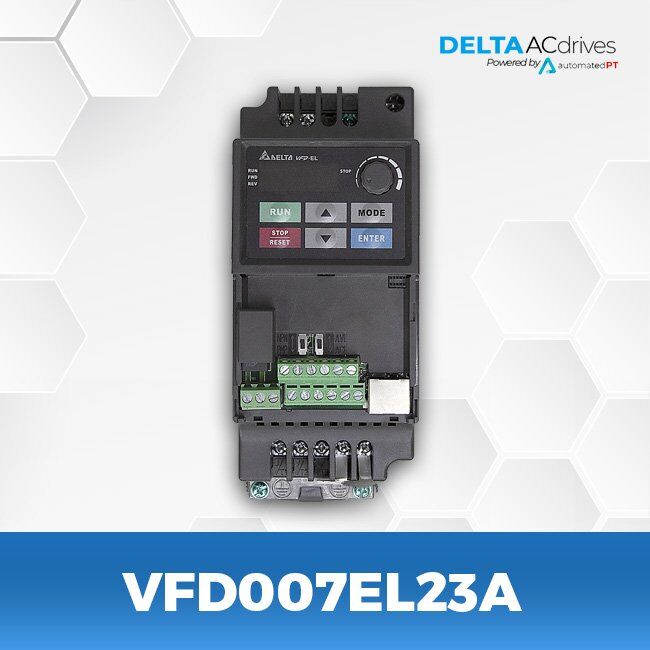

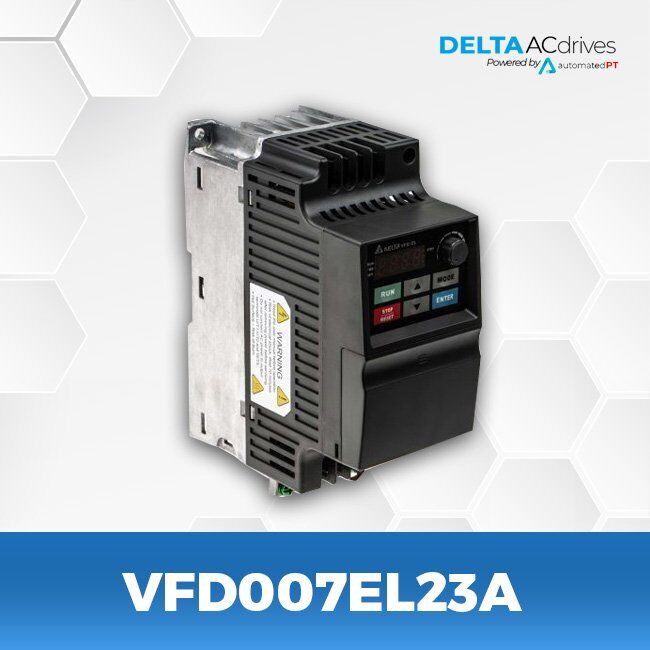

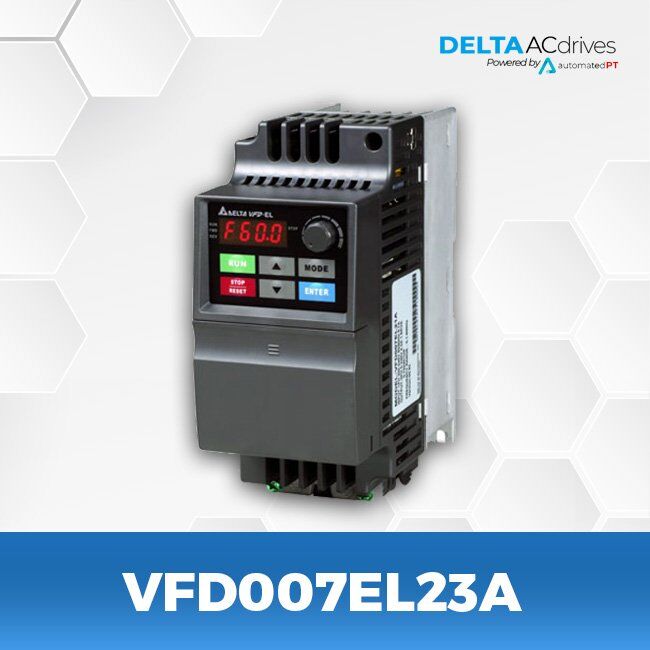

Delta VFD007EL23A VFD-EL Series Drive
$249.64
- Series: VFD-EL
- 1 HP
- 0.75 KW
- 230 V
- 5 A
- Input: 3 PH
The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.
Delta VFD007EL23A – Multiple Functions – Micro Type Drives
Delta Products
AC Drives, VFD-EL Series
ITEM # VFD007EL23A
MFG # VFD007EL23A
Series VFD-EL
Drive, AC, 1Hp, 230V 3-Phase Input/ 3-Phase Output
Specifications
Item Number: VFD007EL23A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-EL
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
HP (CT): 1 Horsepower
Amps (CT): 4.2 Amps
Input Phase: 3
Operator Controls: Built In
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

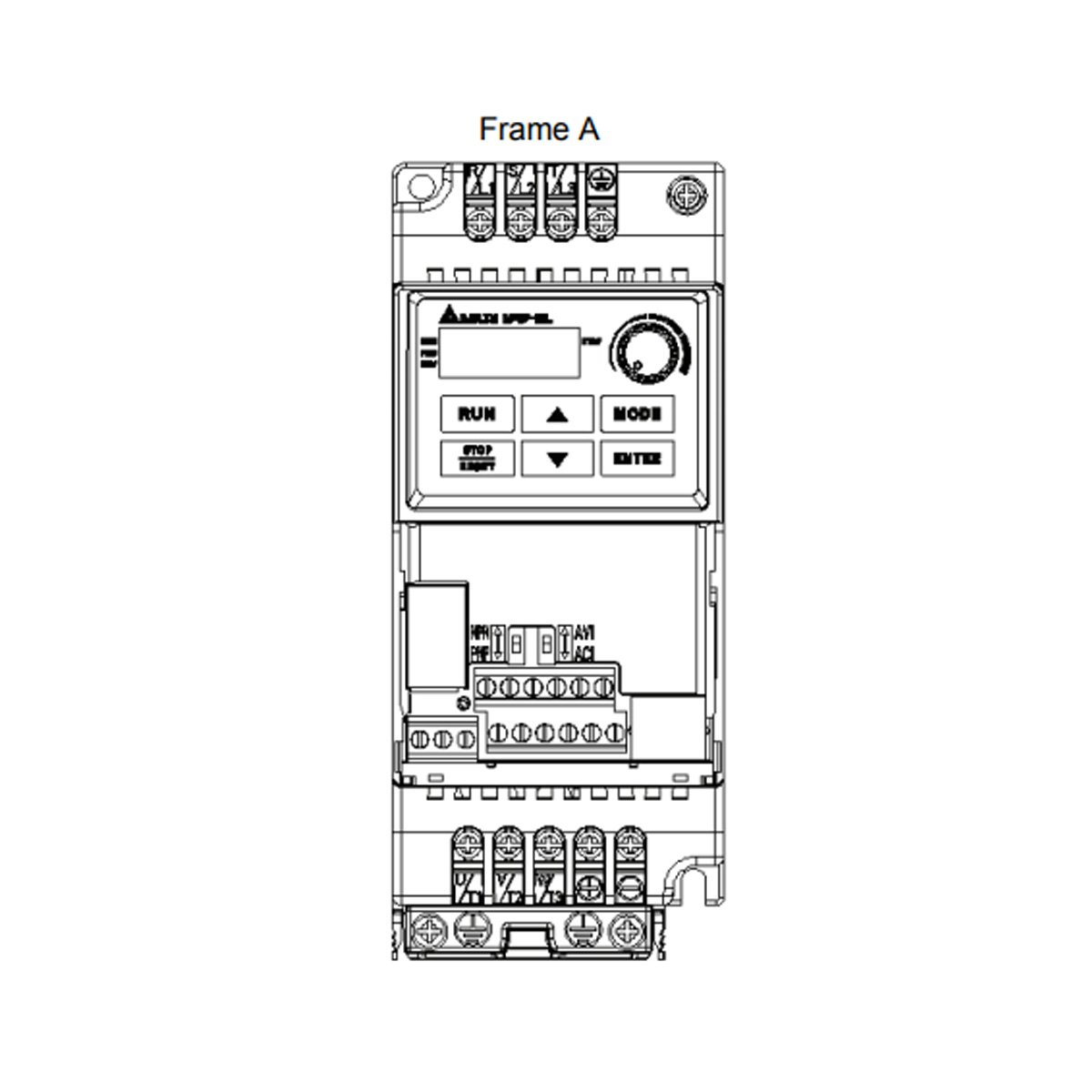

Frame Size: A
Height: 6.86 Inches
Width: 2.83 Inches
Depth: 5.36 Inches
Delta VFD-EL AC Drive Accessories
| Item # | |
| Delta CME-DN01 | CME-DN1 Internal DeviceNet card |
| Delta CME-LW01 | CME-LW01 Internal LonWorks card |
| Delta CME-PD01 | CME-PD01 Internal ProfiBus card |
| Delta CME-COP01 | CME-COP01 Internal CANopen card |
| Delta MKE-EP | MKE-EP Earthing Plate |
| Delta MKEL-DRA | MKEL-DRA Used on VFD-EL Frame A |
| Delta MKEL-DRB | MKEL-DRB Used on VFD-EL Frame B |
| Delta RC-01 | RC-01A Remote Start/Stop station |
| Delta BUE-20015 | BUE-20015 Brake Unit |
| Delta BUE-40015 | BUE-40015 Brake Unit |
| Delta BUE-20037 | BUE-20037 Brake Unit |
| Delta BUE-40037 | BUE-40037 Brake Unit |
| Delta BR200W150 | Braking Resistor |
| Delta BR200W250 | Braking Resistor |
| Delta BR300W100 | Braking Resistor |
| Delta BR300W400 | Braking Resistor |
Click on the links below to see Drawings and Specs:
Delta VFD-EL-B-PD02 Spec Sheet
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
