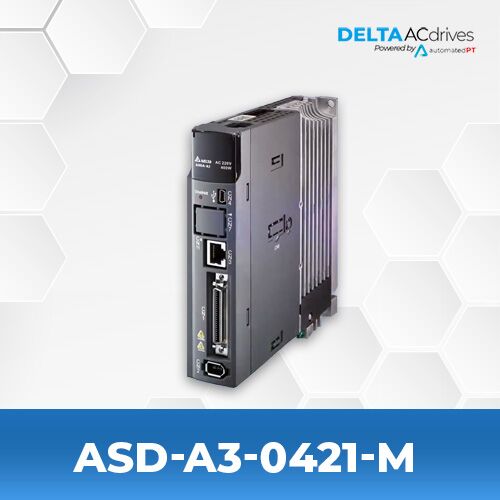

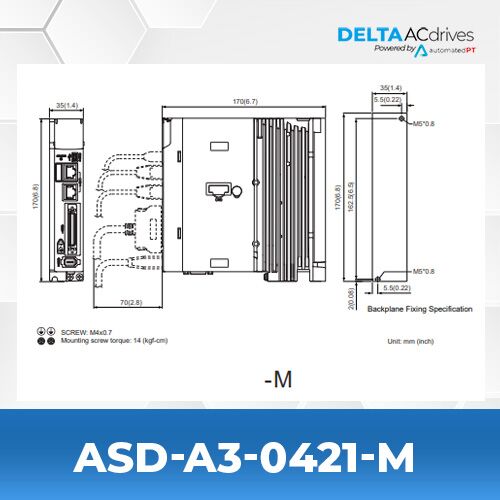

Delta ASD-A3-0421-M Servo Drive
- Series: A3 Servo Drive
- 400 Watts
- 220 Volts Input
- 1/3 Phase (PH)
- 2.65 Arms Output Current
SPECIFICATIONS
| Model Name | ASD-A3-0421-M |
| Series | A3 Servo Drive |
| Phase | 1/3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 0.4 kW |
| Continuous Output Current (Arms) | 2.65 Arms |
| Instantaneous Max Output Current | 10.61 Arms |
| Model Type | PT Mode Pulse Train, PR Mode, RS-485, CANopen, Full-Closed Loop Control, Analog Voltage Control, E-Cam, STO |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA A3 Servo Drive Catalog | |
| Users Manual | Delta ASDA A3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-A3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-A2 seriew with finer grain control and better accuracy. The A3 drives are compatible with both A3 and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, system diagnosis
- STO (Safe Torque Off)
- DC Bus Sharing
- Smaller drive and motors compared to A2
DELTA ASD-A3-0421-M SERVO DRIVE COMPATIBLE MOTORS
| Model Number | Rated Output Power | Rated Torque |
|---|---|---|
| ECM-A3H-CY0604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CY0804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C10804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CG0804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-C20804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3H-CA0804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0604CS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0604DS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0604PS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0604RS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0604SS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0604QS1 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CY0804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C10804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CG0804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-C20804Q71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0804C71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0804D71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0804P71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0804R71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0804S71 | 0.4 kW | 1.27 (N-m) |
| ECM-A3L-CA0804Q71 | 0.4 kW | 1.27 (N-m) |
