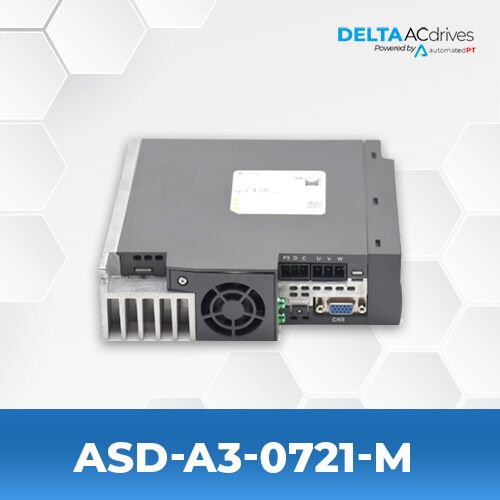

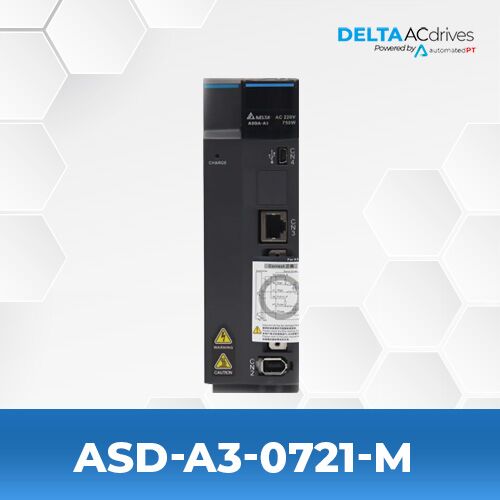

Delta ASD-A3-0721-M Servo Drive

  • Series: A3 Servo Drive
  • 750 Watts
  • 220 Volts Input
  • 1/3 Phase (PH)
  • 5.1 Arms Output Current


SPECIFICATIONS

Model Name ASD-A3-0721-M
Series A3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 0.75 kW
Continuous Output Current (Arms) 5.1 Arms
Instantaneous Max Output Current 21.21 Arms
Model Type PT Mode Pulse Train, PR Mode, RS-485, CANopen, Full-Closed Loop Control, Analog Voltage Control, E-Cam, STO

CATALOG & MANUALS

Catalog Delta ASDA A3 Servo Drive Catalog
Users Manual Delta ASDA A3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-A3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-A2 seriew with finer grain control and better accuracy. The A3 drives are compatible with both A3 and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, system diagnosis
  • STO (Safe Torque Off)
  • DC Bus Sharing
  • Smaller drive and motors compared to A2

DELTA ASD-A3-0721-M SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECM-A3L-CY0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807SS1 0.75 kW 2.39 (N-m)
Model Number Rated Output Power Rated Torque
