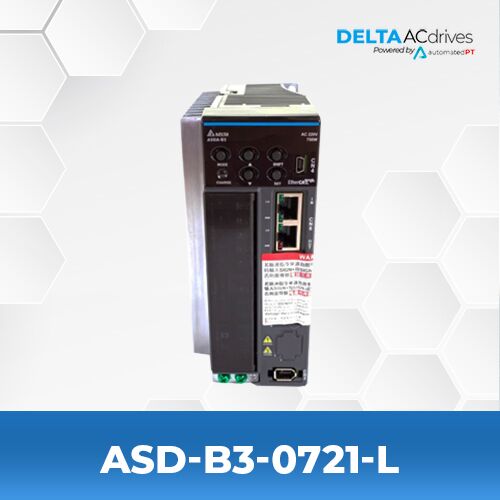

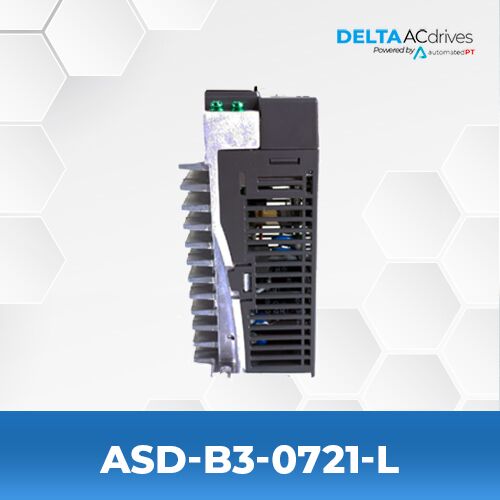

Delta ASD-B3-0721-L Servo Drive

  • Series: B3 Servo Drive
  • Phase1/3 Phase (PH)
  • 750 Watts
  • 5.1 Arms Output Current
  • 220 VAC


SPECIFICATIONS

Model Name ASD-B3-0721-L
Series B3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 750 watts
Continuous Output Current 5.1 Arms
Instant Max Output Current 16.4 Arms
Model Type PT Mode Pulse Input, PR Mode, RS-485, Analog Voltage Control

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

Model Number Rated Output Power Rated Torque
ECM-A3L-CY0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CY0807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-C10807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CG0807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-C20807QS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807CS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807DS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807PS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807RS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807SS1 0.75 kW 2.39 (N-m)
ECM-A3L-CA0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-CY0807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-C10807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-CG0807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-C20807SS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807CS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807DS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807PS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807QS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807RS1 0.75 kW 2.39 (N-m)
ECM-A3H-CA0807SS1 0.75 kW 2.39 (N-m)
ECM-B3M-CA0807RS1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807RJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807CS1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807DS1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807PS1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807QS1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807CJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807DJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807PJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807QJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807SS1 0.75 kW 2.40 (N-m)
ECM-B3M-CA0807SJ1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807RS1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807RJ1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807CS1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807DS1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807PS1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807QS1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807CJ1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807DJ1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807PJ1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807QJ1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807SS1 0.75 kW 2.40 (N-m)
ECM-B3M-C20807SJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807RS1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807RJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807CS1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807DS1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807PS1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807QS1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807CJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807DJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807PJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807QJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807SS1 0.75 kW 2.40 (N-m)
ECM-B3M-CP0807SJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807RS1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807RJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807CS1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807DS1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807PS1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807QS1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807CJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807DJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807PJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807QJ1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807SS1 0.75 kW 2.40 (N-m)
ECM-B3M-CM0807SJ1 0.75 kW 2.40 (N-m)
