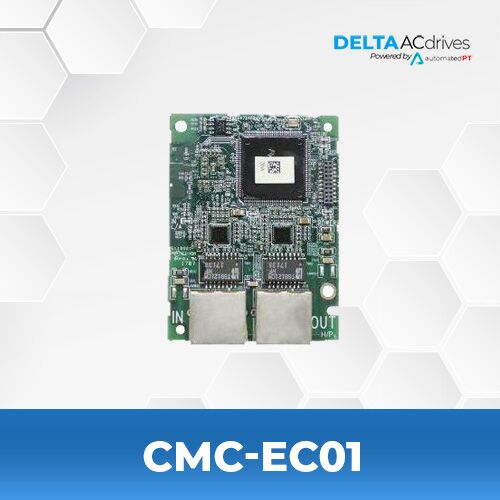

Delta CMC-EC01 EtherCAT Communication Card

$289.01

Lead time – 1-2 weeks

Add on card for C2000, CH2000 VFD’s
EtherCAT Communication Card

Description

SPECIFICATIONS

Model Name	CMC-EC01
Number of Ports	2
Transmission Method	IEEE 802.3, IEEE 802.3u
Transmission Cable	Category 5e shielding 100M
Transmission Speed	10/100 Mbps
Communication Protocol	EtherCAT

FILES


Catalog	Delta C2000 Series Catalog
Users Manual	Delta C2000 Series Users Manual
Catalog	Delta CH2000 Series Catalog
Users Manual	Delta CH2000 Series Users Manual
C2000 EtherCAT Communication Card User Manual	Delta C2000 EtherCAT Communication Card User Manual
CH2000 EtherCAT Operation Manual	Delta CH2000 EtherCAT Operation Manual
C2000 EDS File	Delta CMC-EC01 C2000 EDS Files
CH2000 EDS File	Delta CH2000 CMC-EC01 EtherCAT XML

PRODUCT DESCRIPTION

Features
► Supports EtherCAT protocol
► Supports standard CiA402 speed mode
► Supports SDO (Service Data Objects) function:
To write motor drive parameters
To read motor drive information
► Auto shutdown function for interruptions during data transmission

Network Interface
Interface RJ-45
Number of ports 2 Ports
Transmission method IEEE 802.3, IEEE 802.3u
Transmission cable Category 5e shielding 100 M
Transmission speed 100 Mbps
Network protocol EtherCAT
