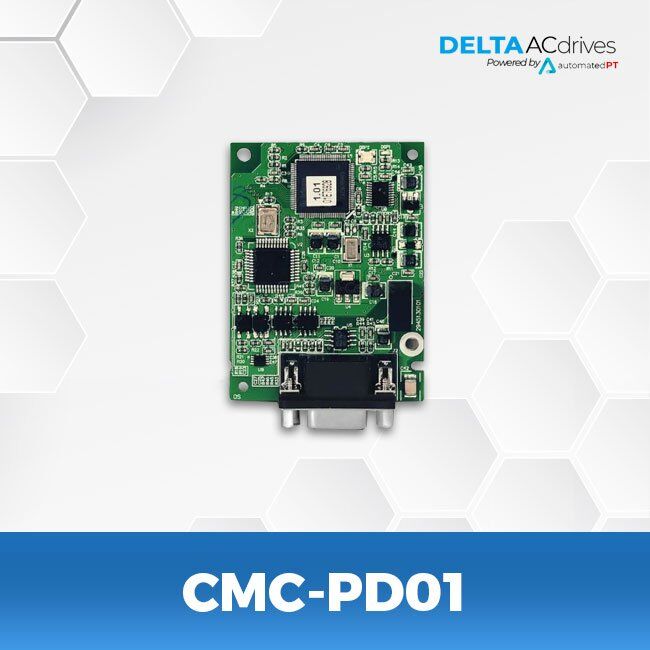

Delta CMC-PD01 PROFIBUS DP Communication Card
$345.60
- Add on card for CP2000 C2000 CH2000 VFD’s
- PROFIBUS DP Communication Card
SPECIFICATIONS
| Interface | DB9 connector |
| Transmission method | High-speed RS-485 |
| Transmission cable | Shielded twisted pair cable |
| Electrical isolation | 500 VDC |
| Message type | Cyclic data exchange |
| Module name | CMC-PD01 |
| GSD document | DELA08DB.GSD |
| Company ID | 08DB (HEX) |
| Serial transmission speed supported (auto-detection) |
9.6 Kbps; 19.2 Kbps; 93.75 Kbps; 187.5 Kbps; 500 Kbps; 1.5 Mbps; 3 Mbps; 6 Mbps; 12 Mbps (bit /per second) |
FILES
 |
|
| Catalog | Delta C2000 Series Catalog |
| Users Manual | Delta C2000 Series Users Manual |
| Catalog | Delta CP2000 Series Catalog |
| Users Manual | Delta CP2000 Series Users Manual |
| Catalog | Delta CH2000 Series Catalog |
| Users Manual | Delta CH2000 Series Users Manual |
| Instruction Sheet | Delta CMC-PD01 PROFIBUS Instruction Sheet |
| Operation Manual | Delta CMC-PD01 PROFIBUS Operation Manual |
| C2000 PROFIBUS GSD File | Delta CMC-PD01 PROFIBUS C2000 GSD File |
| CH2000 PROFIBUS GSD File | Delta CMC-PD01 PROFIBUS CH2000 GSD File |
| CP2000 PROFIBUS GSD File | Delta CMC-PD01 PROFIBUS CP2000 GSD File |
| C2000 Highspeed PROFIBUS GSD File | Delta CMC-PD01 PROFIBUS C2000 Highspeed GSD File |
| C2000 GSD File | Delta CMC-PD01 C2000 GSD File |
PRODUCT DESCRIPTION
Communication card, PROFIBUS DP Features :
► Supports PZD control data exchange
► Supports PKW polling AC motor drive parameters
► Supports user diagnosis function
► Supports remote I/O function
► Baud (auto-detection): max. 12Mbps
