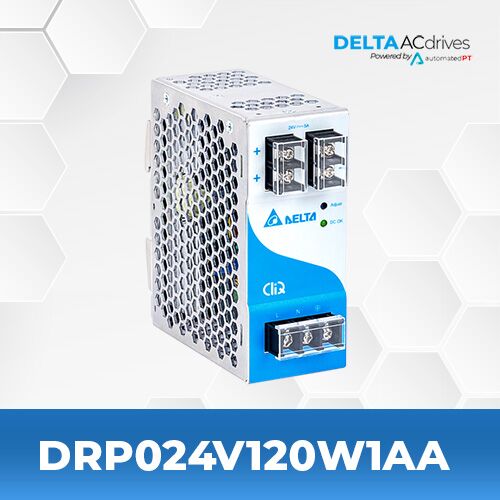

Delta DRP024V120W1AA DIN Rail Cliq Series

  • Output Voltage: 24V
  • Output Power: 60W
  • Output Current: 2.5A
  • Input Voltage Range: 85-264Vac
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
This product is no longer manufactured or sold. The Delta recommended replacement is the DRF-24V240W1GBA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


SPECIFICATIONS

Model Name DRP024V120W1AA
Series DIN Rail Power Supply
Output Voltage 24V
Input Voltage Range 85-264Vac
Output Current 5A
Unit Weight 0.54 kg (1.19 lb)

CATALOG & MANUALS

Catalog Delta DIN Rail Product Selection Guide
Users Manual Delta DIN Rail Manual

Features Include:

  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 3 seconds
  • Full corrosion resistant aluminium casing
  • SEMI F47 certified
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conform coating on PCBAs to protect against common dust and chemical pollutants
  • Hazardous Locations approval to ATEX and Class I, Div 2
  • Certified according to IEC/EN/UL 62368-1
