Delta DVP16EC00R3 DVP-EC Series PLC

Delta DVP16EC00R3 DVP-EC Series PLC

  • DVP-EC3 Series
  • Built-in I/O: 16 I/O
  • Program Capacity: 4k Steps
  • Supports 2 points (Y0, Y1) of independent high-speed (max. 10 kHz) pulse output

PRODUCT SPECIFICATIONS

Model Name DVP16EC00R3
Series DVP-EC3 Series
Output Method Relay
Program Capacity 4k Steps
Inputs 8
Outputs 8
High-Speed Counter 2 points, max. 10 kHz
Communication Built-in RS-232 and RS-485 ports

FILES

Catalog Delta DVP-EC3 Series Catalog

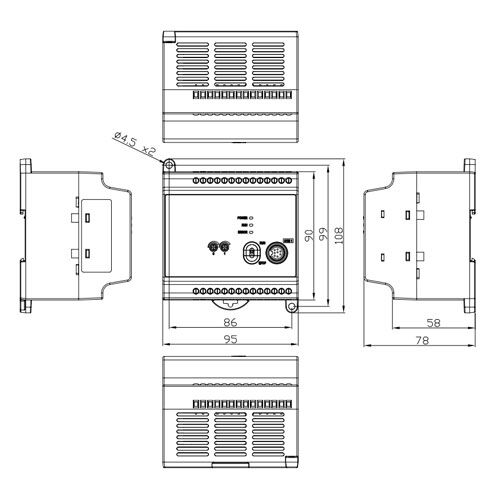

Dimensions Delta DVP16EC00R3 Dimensions
Instruction Sheet Delta DVP16EC00R3 Instruction Sheet
2D CAD Delta DVP16EC00R3 2D CAD
3D CAD Delta DVP16EC00R3 3D CAD  |  (View 3D File)
UL Certificate Delta DVP16EC00R3 UL Certificate
Cable Selection Guide Delta DVP16EC00R3 Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Applicable for sequence control and simple RS-485 / Modbus communication

Features

    • Built-in I/O: 10 / 14 / 16 / 20 / 24 / 30 / 32 / 40 / 48 / 60
    • Program capacity: 8 k steps
    • COM port: Built-in RS-232 & RS-485 ports (10 / 14-point models do not support RS-485), compatible with Modbus ASCII / RTU protocol
    • Supports 2 points (Y0, Y1) of independent high-speed (max. 10 kHz) pulse output
