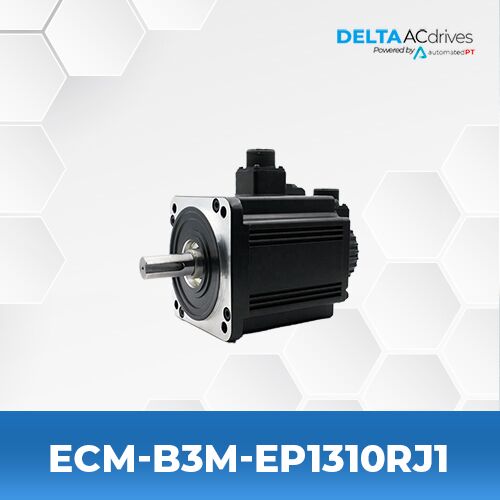

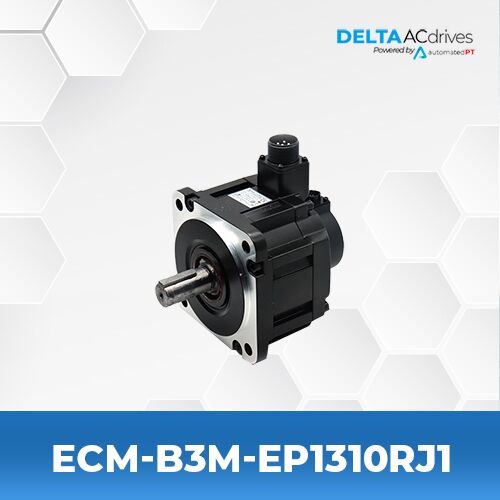

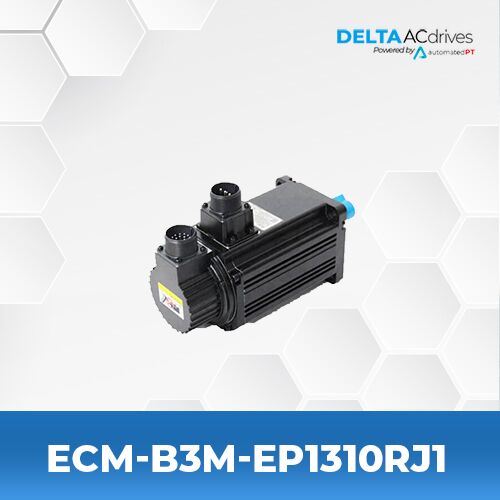

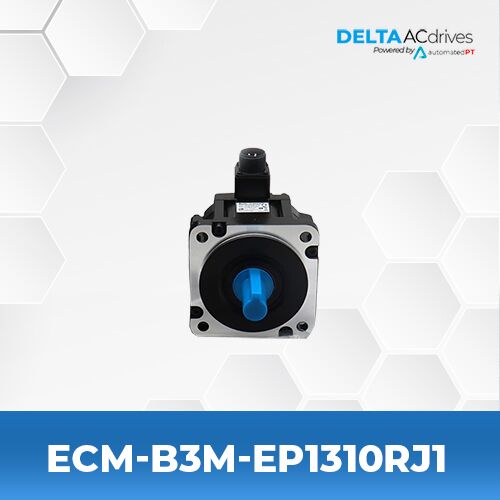

Delta ECM-B3M-EP1310RJ1 Servo Motor
- ECM-B3M Medium Inertia Motor Series
- Drive Resolution: 24-Bit
- 1 Kilowatt
- No Brake
- Rated Torque: 4.77 (N-m)
SPECIFICATIONS
| Model Name | ECM-B3M-EP1310RJ1 |
| Motor Series | ECM-B3M Medium Inertia Series |
| Output Power | 1 kW |
| Torque | 4.77 (N-m) |
| Voltage | 220 VAC |
| Phase | 1 / 3 (PH) |
| Rated Current | 5.96 Arms |
| Instant Max Output Current | 19.9 Arms |
SERIES DESCRIPTION
ECM-B3 series is Delta’s newest generation of servo system motor. Compatible with the ASDA-B3 servo drive.
Features Include
- Low and medium inertia options available
- Multiple options for encoder type, brake, oil seal, and shaft
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA B3 Servo Drive Catalog | |
| Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
COMPATIBLE DRIVES
