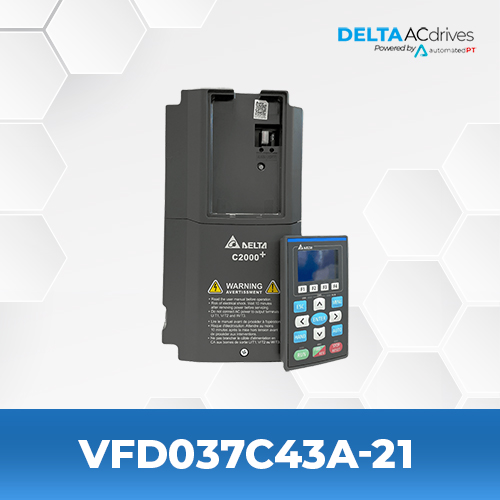

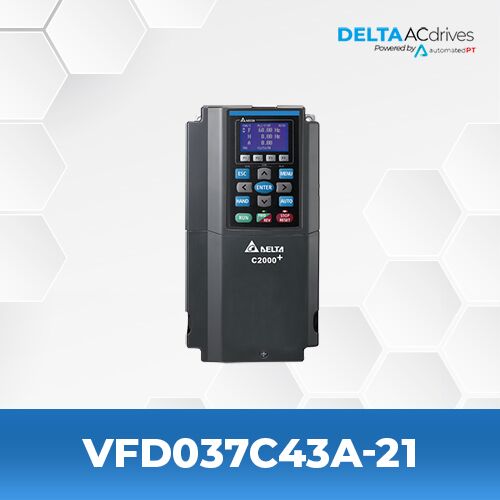

|Alternative Model Name||VFD037C43A|
|Input Voltage – Phase||460 V – 3 Phase|
|Motor Power Range||3.7 kW – 5 HP – 9 Amps|
|Dimensions||5.12in (W) X 9.84in (H) X 6.69in (D)|
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.
CATALOG & MANUALS
|Catalog||Delta C2000+ Drive Catalog|
|Users Manual||Delta C2000+ Drive Users Manual|
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.
Advanced Drive Controls
For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode
Versatile Drive Controls
Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control
Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature
Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan
Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
