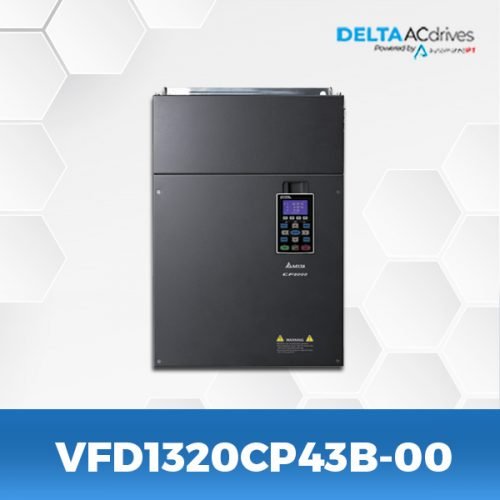

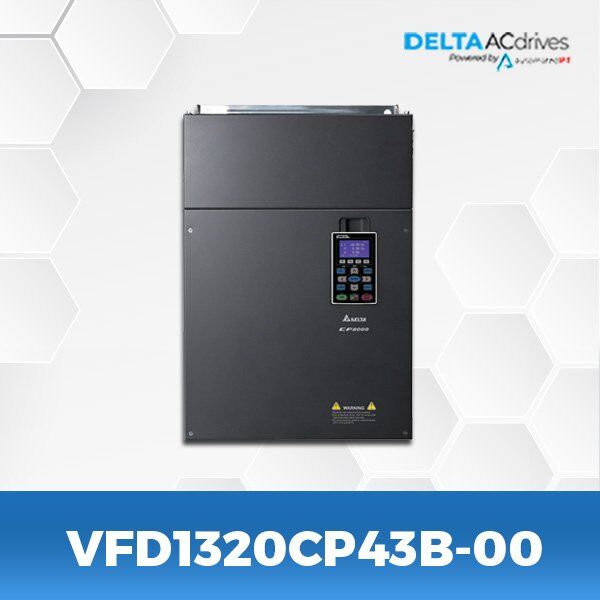

Delta VFD1320CP43B-00 CP2000 Series Drive
$8,290.40
- Series: CP2000
- 460 V
- 3 Phase
- 175 HP
- 132 KW
- EMC Filter: No
- Light Duty Amps: 260 A
SPECIFICATIONS
| Model Name | VFD1320CP43B-00 |
| Series | CP2000 |
| Input Voltage – Phase | 460 V – 3 Phase |
| Horsepower – Kilowatts | 175 HP – 132 KW |
| Light Duty* Amps | 260 A |
| Normal Duty** Amps : | 220 A |
| Frame Size | E |
| IP Rating | IP 00 |
| Built In EMC Filter | No |
| Built In Braking Chopper | No |
| Built In DC Reactor | Yes |
| Weight | 142.56 Lbs |

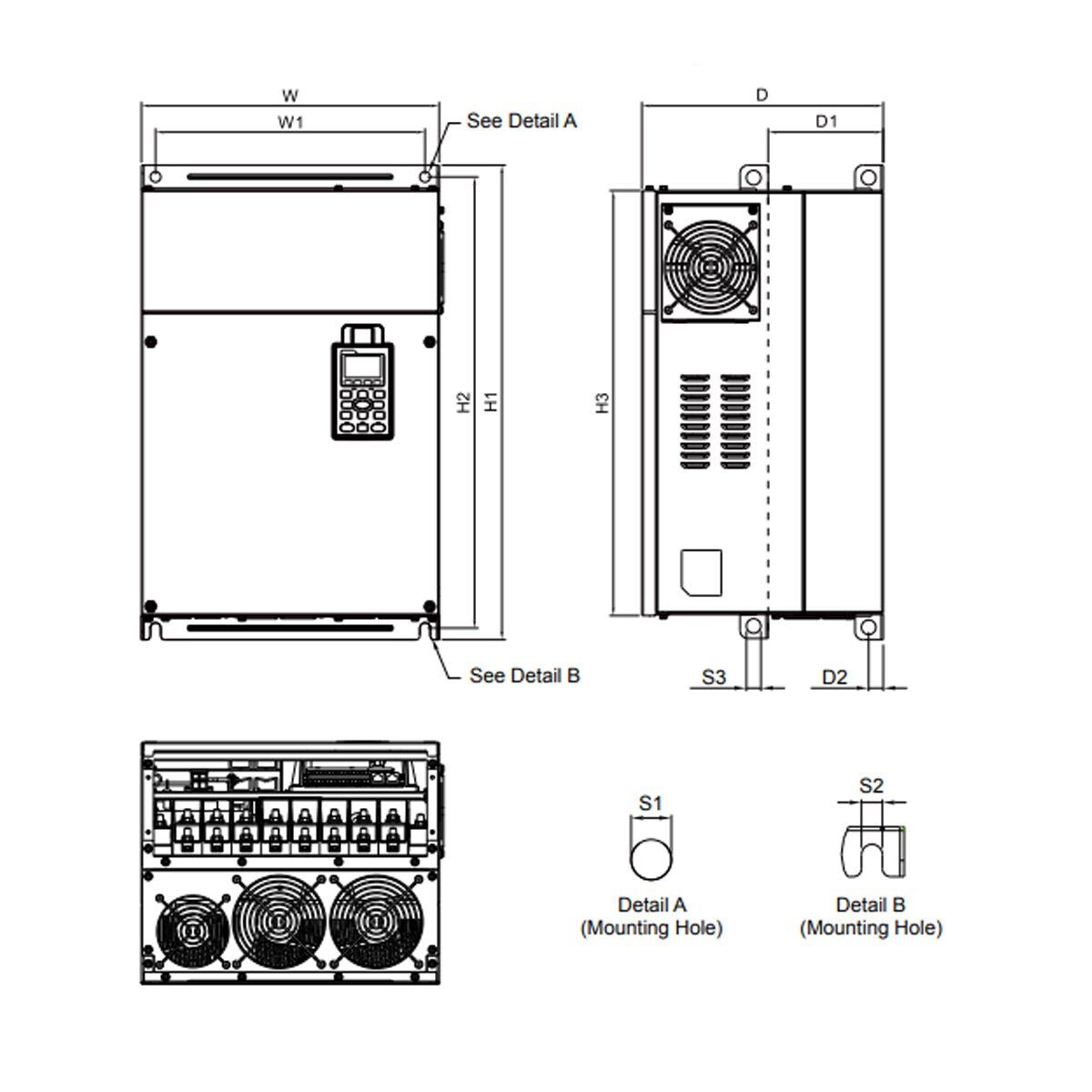

| Dimensions | 11.81 (in) x 14.57 (in) x 23.19 (in) |
* Light Duty : 120% of rated current for 1 minute during every 5 minutes
** Normal duty: 120% of rated current for 1 minute during every 5 minutes; 160% of rated current for 3 seconds during every 25 seconds
FILES
 |
|
| Catalog | Delta CP2000 Catalog |
| Users Manual | Delta CP2000 Users Manual |
| Dimensions | Delta VFD1320CP43B-00 Dimensions |
| 2D-CAD File | Delta VFD1320CP43B-00 2D-CAD |
| 3D-CAD File | Delta VFD1320CP43B-00 3D-CAD |
| Energy Efficiency Report | Delta CP2000 Series Energy Efficiency Report |
| UL Certification | Delta C2000 Series UL Certification |
SERIES DESCRIPTION
The CP2000 Series is for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.
Features Include:
High Performance Variable Frequency Drive Technology
Sensorless Vector Control (SVC) | Dual rating design (Light duty & Normal duty) | Excellent variable torque control of asynchronous motors
Modular Design
Hot pluggable LCD keypad | I/O extension card | Various communication cards | Removable fans
Environmental Adaptability
50°C operation temperature | DC choke | Coated circuit boards | EMC filter | International safety standard CE/UL/cUL
