Delta’s VFD-VL series AC motor drive designed for elevators are based on years of experiences in designing AC motor drives, and the latest control technology adopted in VFD-VL will offer you high reliability and safety. All the features of VFD-VL are to meet the needs from the market, e.g. controlling the brake for motors, backup electricity, built-in brake loop, auto-tuning of motor parameters, numerous encoder interfaces, bountiful communication functions and self protection, etc.
Delta VFD150VL23A – Elevator Motor Drives
Product Name AC Drive
Description Elevator Drive
Manufacturer : Delta
Comm.: RS-485 (MODBUS)
Start-up Torque: 150% AT 0.5 HZ and 200% AT 0.0 HZ (WITH PG)
Overload Endurance: 150% FOR 1 MINUTE and 200% FOR 2 SEC.
PG Close Loop: YES
PID/PLC Function: NO
Control Mode: V/F, SENSORLESS VECTOR, V/F-PG, FOC-PG, TORQUE-PG (2) FOC-PG (FOR PM MOTOR)
Braking Chopper: In-Built
Application: Elevator for PM and IM Motor
Output Current: 39
Output Frequency (HZ): 0.00 TO 120 HZ
Voltage Class: 440V
Supply Type (A): 3

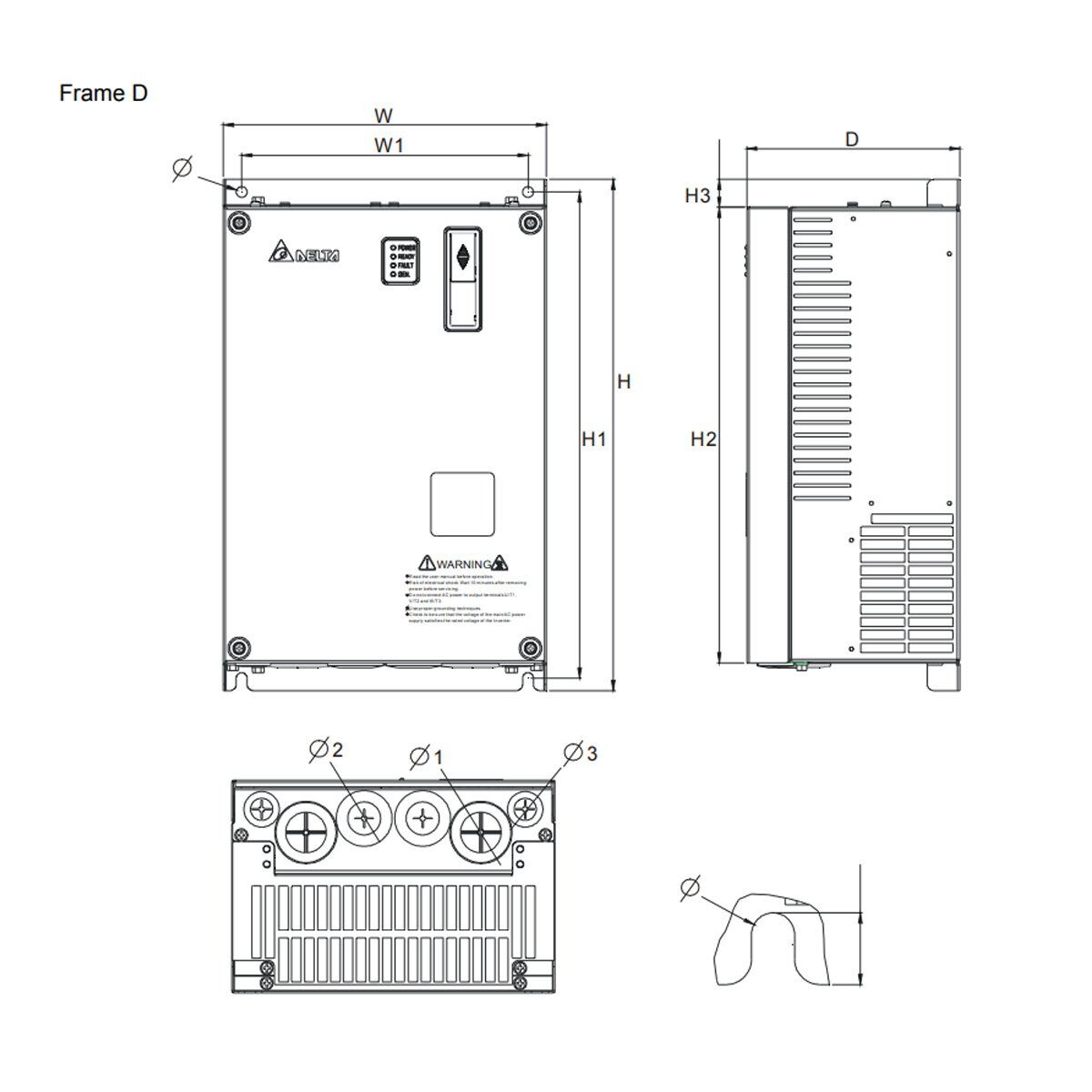

Click on the links below to see Drawings and Specs:
