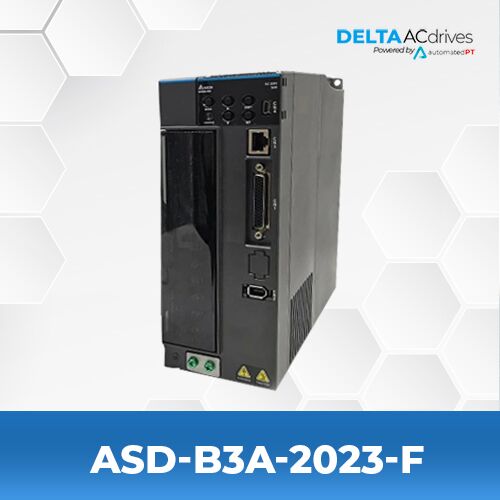

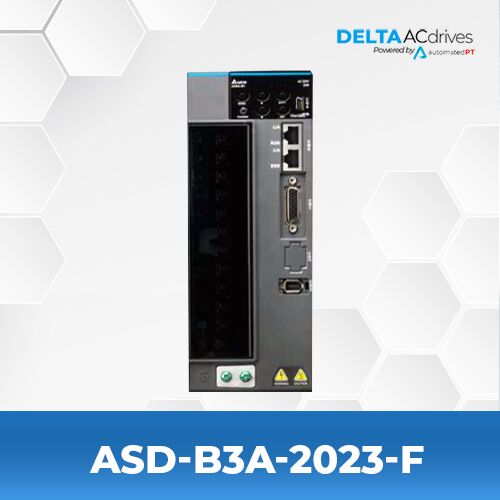

Delta ASD-B3A-2023-F Servo Drive
- Series: B3 Servo Drive
- Phase3 Phase (PH)
- 2 Kilowatts
- 13.4 Arms Output Current
- 220 VAC
SPECIFICATIONS
| Model Name | ASD-B3A-2023-F |
| Series | B3 Servo Drive |
| Phase | 3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 2 Kilowatts |
| Continuous Output Current | 13.4 Arms |
| Instant Max Output Current | 38.3 Arms |
| Model Type | PT Mode Pulse Input, PR Mode, Analog Voltage Control, DMCNET, STO |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA B3 Servo Drive Catalog | |
| Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- STO (Safe Torque Off)
- DC Bus Sharing
- Smaller drive and motors compared to B2
DELTA ASD-B3A-2023-F SERVO DRIVE COMPATIBLE MOTORS
| Model Number | Rated Output Power | Rated Torque |
|---|---|---|
| ECM-B3M-EA1320RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1320SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21320SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1320SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1320SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EA1820SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-E21820SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EP1820SJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820RS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820RJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820CS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820DS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820PS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820QS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820CJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820DJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820PJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820QJ1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820SS1 | 2 kW | 9.55 (N-m) |
| ECM-B3M-EM1820SJ1 | 2 kW | 9.55 (N-m) |
