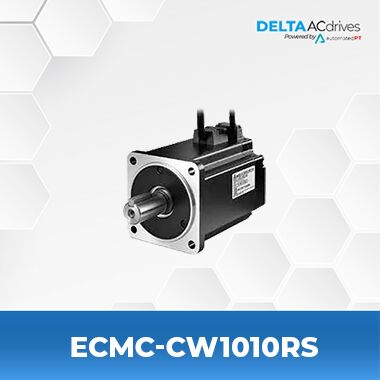

Delta ECMC-CW1010RS Servo Motor



  • ECMC Medium Interia Series
  • Drive Resolution: 24-Bit
  • Rated Power: 1000 Watts
  • No Brake
  • Rated Torque: 3.18 (N-m)

SPECIFICATIONS

Model Name ECMC-CW1010RS
Motor Series ECMC Medium Interia
Output Power 1 kW
Torque 3.18 (N-m)
Voltage 220 VAC
Phase 1 / 3 Phase
Continuous Output Current 7.3 Arms
Instant Max Output Current 21.9 Arms

SERIES DESCRIPTION

ECM-A3 series is Delta’s newest generation of servo system motor.

Features Include

  • Low inertia rated at 3000 r/min
  • High inertial rated at 6000 r/min
  • Multiple options for encoder type, brake, oil seal, and shaft

CATALOG & MANUALS

Catalog Delta ASDA A3 Servo Drive Catalog
Users Manual Delta ASDA A3 Servo Drive Catalog Users Manual
