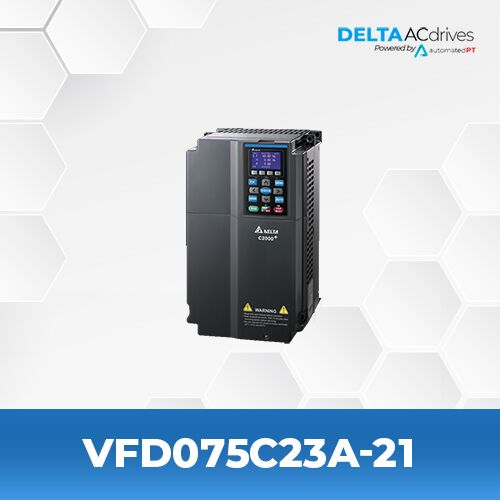

Delta VFD075C23A-21 C2000 Series Drive
$987.62
- Series: C2000
- 230 V
- 3 Phase
- 10 HP
- 7.5 KW
- EMC Filter: No
- Heavy Duty Amps: 33 A
SPECIFICATIONS
| Model Name | VFD075C23A-21 |
| Series | C2000 |
| Input Voltage – Phase | 230 V – 3 Phase |
| Horsepower – Kilowatts | 10 HP – 7.5 KW |
| Heavy Duty* Amps | 33 A |
| Super Heavy Duty** Amps : | 25 A |
| Frame Size | B |
| IP Rating | IP 20 |
| Built In EMC Filter | No |
| Built In Braking Chopper | Yes |
| Built In DC Reactor | No |
| Built In CANopen Card | No” |
| Weight | “11.88 Lbs |
| Dimensions | 7.48 (in) x 7.48 (in) x 12.6 (in) |
* Heavy duty: 150% of rated current for 60 seconds every 5 minutes; 180% for 3 seconds every 30 seconds
** Super Heavy duty: 150% of rated current for 60 seconds every 5 minutes; 200% for 3 seconds every 30 seconds
FILES
 | |
| Catalog | Delta C2000+ Series Catalog |
| Users Manual | Delta C2000+ Series Users Manual |
| Dimensions | Delta VFD075C23A-21 Dimensions |
| 2D-CAD File | Delta VFD075C23A-21 2D-CAD |
| 3D-CAD File | Delta VFD075C23A-21 3D-CAD |
| Energy Efficiency Report | Delta C2000+ Series Energy Efficiency Report |
| UL Certification | Delta C2000+ Series UL Certification |
SERIES DESCRIPTION
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.
Features Include:
Advanced Drive Controls
0 – 599 Hz Speed Control | For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode
Versatile Drive Controls
Built-in Safe Torque Off (STO) | Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control – Homing, Multi-point, Single-point
Environmental Adaptability
International safety standard certifications – CE,UL,cUL | 50˚C operating temperature | Coated circuit boards
Modular Design
Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan
Others
Full set of accessories available below | Fast Response to Impact Load | Controls Permanent Magnet or Induction Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
